201143-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONN PIN MINI COAXI RG/U CABLE RF Connectors / Coaxial Connectors MIN PIN Contact PIN Crimp ST Cable Mount Product Highlights:ContactPinTerminate To Coaxial Cable, Terminate To Twisted PairCable Type = 174, 188, 188-Type (DB), 188A, 316, 316DBWire/Cable Type = StrandedSearch Keywords:RF, multi position, MIN PIN |
| 分类 |
商业参数
| 产品 | Contacts | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 阻抗 | Non-Matched | 连接器阻抗 | 不匹配 |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 镀层 | Gold | 材料（通用） | Beryllium Copper |
| 包装方式 | Bulk | 电缆类型 | RG 316DB, RG 174, RG 188, RG 188DB Type, RG 188A, RG 316 |
| 本体表面处理 | Gold | 方向 | Straight |
| 端接方式 | Crimp | 触头类型 | Coaxial |
| 外壳表面处理 | 金 | 基体材料 | Brass |
| 插针或插孔 | Pin | 外壳镀层 | Gold (30) over Nickel (30) |
| 连接器类型 | Connector Circular | 接触镀层 | Gold |
| 外壳材料（壳体） | Brass per MIL-C-50 | 触头材料 | Brass |
| 壳体材料 | 黄铜 | 面板安装类型 | 直式 |
| 主要材料 | 直式 | 端接样式 | Crimp |
| 导体材料 | Brass per QQ-B-626 | 接触件端接 | Crimp |
| 介电材料 | Polypropylene | 镀层厚度（通用） | 30µin (0.76µm) |
| 中心触点表面处理 | 金 | 兼容外壳尺寸（如TM-700等） | G 系列模块化连接器 |
| 中心触点镀层工艺 | Gold (30) over Nickel (30) | 中心触点材料 | 铍铜合金 |
| 供应商器件封装 | CR ZIF System, G Series, M Series, W Series | 接触镀层厚度 | 30 |
| 触点材料 - 配合 | Without | 线规或范围 - mm² | 0.20-0.40² [24-22] |
产品信息
| 备注 | Maximum insulation diameter-2.92 [.115] (two wires combined); A ferrule and ret | 类型 | Coaxial |
| 连接器性别 | PIN | 制造商全称 | AMP |
| 产品子类型 | Contact | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
文档与媒体
相关型号
201142-2
te connectivity / amp
Connector Accessories Retention Spring Beryllium Copper Multiple Coaxial Contacts (COAXICON) CONN SPRING RETENTION COAXIAL RF Connector Accessories COAXICON CONTACTS Connector Accessories Retention Spring Beryllium Copper Product Highlights:Retention SpringSearch Keywords:RF, multi position, RETENTION SPRING, M SERIES CONNECTOR RETENTION SPRING,PLTD
202648-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) CONN PIN MODULE 11POS G-SERIES Pin & Socket Connectors PIN MODULE 11P G-SERIES Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 11Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 11 POSN, G-SERIES
202515-1
te connectivity / amp
Conn Housing PL 42 POS ST M Series Connectors CONN PLUG 42 POS MIXED PANEL MT TE Connectivity 42 Way Straight Male Multiway Connector Pin & Socket Connectors 42 POS BLOCK M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Phenolic Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 42WAY Mseries,plug,42waymixedcontact TE Connectivity M 系列 5 行 42 路 直 公 面板安装 压接连接器外壳 42 POS BLOCK
213090-4
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) PIN MODULE, 8 POSN, G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:Contact Module8 PositionsDiallyl Phthalate Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
202515-3
te connectivity / amp
Conn Housing PL 42 POS Crimp ST Panel Mount M Series Connectors CONN PLUG BLOCK 42POS BLUE Pin & Socket Connectors 42-POS-BLOCK PLUG M Series Connectors Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialPlugConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS BLOCK
328666
TE Connectivity AMP Connectors

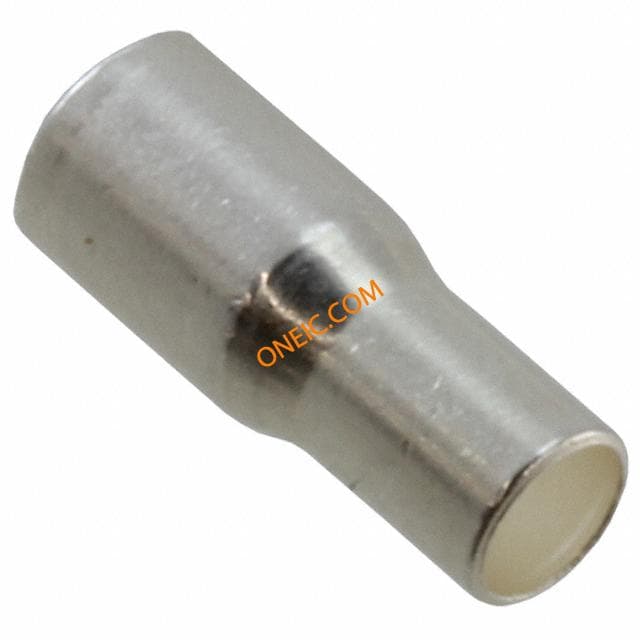

Connector Accessories Ferrule Multiple Coaxial Contacts (COAXICON) CONN FERRULE STEP DOWN GOLD PLTD RF Connector Accessories FERRULE, STEP DOWN PLTD
