2-552474-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IEEE 488 RCP 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONT.CHAMP PANEL MOUNT,RECEPT |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | A1533 |
| 子类别 | Connector Interface | 产品类别 | Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 间距 | 2.16 mm | 包装方式 | Tray |
| 厚度 | Thin | 电缆类型 | 7 Strand |
| 铜缆类型 | E | 屏蔽类型 | No |
| 端接方式 | IDC | 第二连接器 | With |
| 外壳颜色 | Yellow | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel |
| 法兰特征 | Hollow, Unthreaded | 排数 | 2 |
| 连接器样式 | RP | 锁定特性 | Bail Lock, Screwlocks |
| 外形（宽 x 高） | Standard | 包装数量 | Tray |
| 面板安装类型 | With | 绝缘直径 | 1.14 [.045] Max. |
| 位数 | 24 | 线规或范围 - mm² | 0.09² [28], 0.10² [27], 0.14² [26] |
产品信息
| 备注 | RP Style is not compatible with integral locking latch receptacles | 类型 | IEEE 488 |
| 连接器性别 | RCP | 产品子类型 | Connector |
文档与媒体
相关型号
552301-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 24 POS, C SLOT Headers & Wire Housings PLUG 24P SCREW LOCK 22AWG solid/stranded Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 24Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
553598-1
te connectivity / amp
Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 24 PIN CHAMP LATCH PLUG-SCREW I/O Connectors PLUG 24P SCREW LOCK low profile plastic Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 24Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP Latch 系列 2行 24路 1.27mm节距 直角 公 IDC 连接器 , 电缆安装 PLUG ASSY,24 POSN,SCR LK,L PF
552221-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm Solder ST Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors ASSY, PLUG, 24 POS, VERT MTG Headers & Wire Housings PLUG 24P SCREW LOCK vertical mount
552443-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24Terminal 1Port Tray 2.16 [.085] IDC Connectors 24 CONTACT,CHAMP PLUG SCREW LOCK Headers & Wire Housings PLUG 24P SCREW LOCK 26-28 AWG stranded Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Conn IEEE 488 PL 24 POS 2.16mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:Connector Classification = IDCProduct Category = ConnectorsConnector24 PositionsPlugSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics
5552221-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm Solder ST Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN PLUG CHAMP 24POS VERT Conn IEEE 488 PL 24 POS 2.16mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:PlugNumber of Positions = 24PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics ASSY, PLUG, 24 POS, VERT MTG
5552741-1
te connectivity / amp
Conn IEEE 488 PL 24 POS 2.16mm Solder RA Thru-Hole 24 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN PLUG CHAMP 24POS RT ANG Headers & Wire Housings PLUG 64P EDGE MNT w/ACTION PIN Conn IEEE 488 PL 24 POS 2.16mm Solder RA Thru-Hole 24 Terminal 1 Port Product Highlights:PlugNumber of Positions = 24PCB Mount Style = Right AngleStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics
554103-1
te connectivity / amp
Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray I/O Connectors PLUG 24P PANEL MNT low profile plastic 2.16 [.085] IDC Connectors PLUG ASSY,24 POSN,PNL MTG,L PF Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 24Low ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP Latch 系列 2行 24路 1.27mm节距 公 IDC 连接器 , 面板安装
552741-1
TE Connectivity / AMP
Headers & Wire Housings PLUG 24P STANDARD 540 2.16 [.085] Printed Circuit Board Connectors ASSY,PLUG,24 POSN, RTANGLE PCB

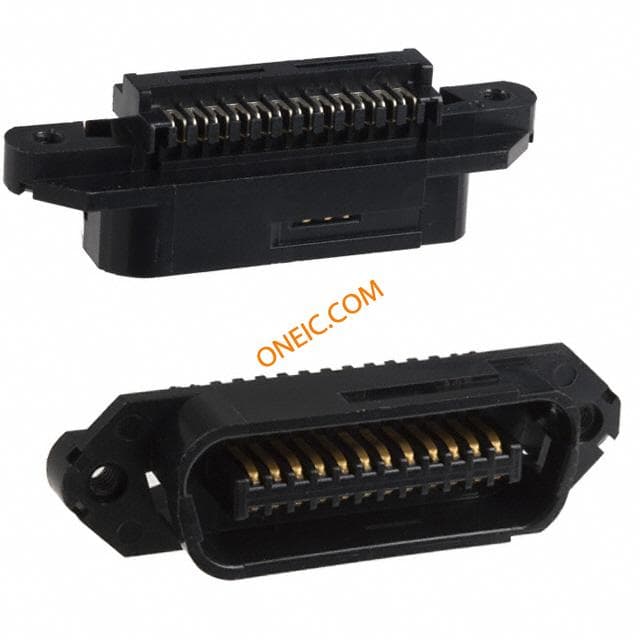

4-24036-0130
