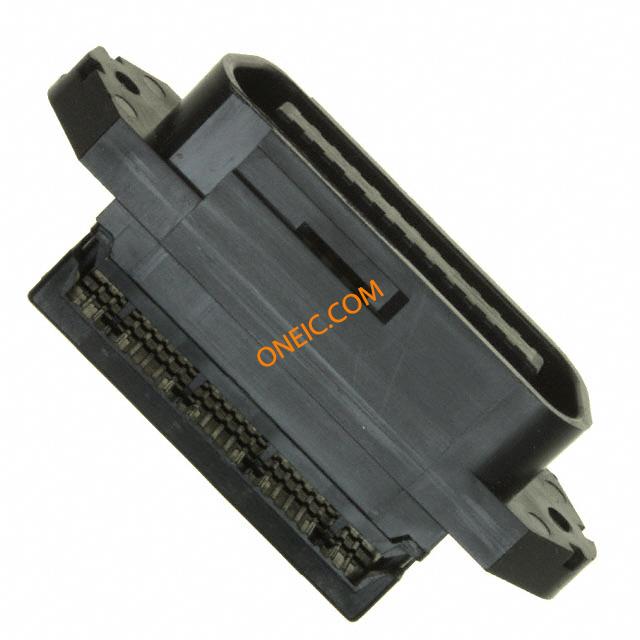

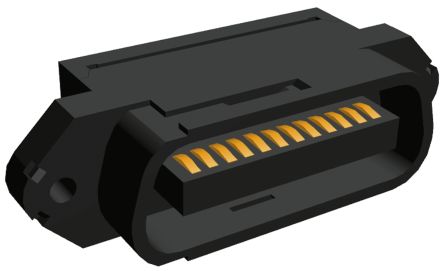

553598-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 24 PIN CHAMP LATCH PLUG-SCREW I/O Connectors PLUG 24P SCREW LOCK low profile plastic Conn SCSI PL 24 POS 1.27mm IDT RA Cable Mount 24 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 24Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP Latch 系列 2行 24路 1.27mm节距 直角 公 IDC 连接器 , 电缆安装 PLUG ASSY,24 POSN,SCR LK,L PF |
| 分类 |
商业参数
| 交货时间 | 98 Days | 子类别 | Connector SCSI |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 螺钉锁, 螺钉锁 | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 包装方式 | Tray | 屏蔽 | 否 |
| 电缆类型 | Ribbon Cable | 方向 | 直角 |
| 排间距 | 1.27 mm [ .05 in ] | 屏蔽类型 | No |
| 端接方式 | IDT | 第二连接器 | With |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Gold Flash over Palladium Nickel over Nickel, Gold over Nickel | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Cable | 排数 | 2 |
| 外壳材料（壳体） | 热塑性 | 连接器样式 | Center Strip Contacts |
| 插入件材料 | 磷青铜 | 锁定特性 | Screwlocks |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | Tray |
| 面板安装类型 | With | 端接排数 | 螺钉 |
| 端接样式 | IDC | 线规 - 端部 | 28 |
| 触点数 | 24 | 位数 | 24 |
| 排距 - 配合 | 1.27 [0.050] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 30 – 26 | 线规或范围 - mm² | .05 – .13 |
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 系列 | CHAMP Latch | 产品特性 | IDC Connectors |
| 产品子类型 | Connector | ||
