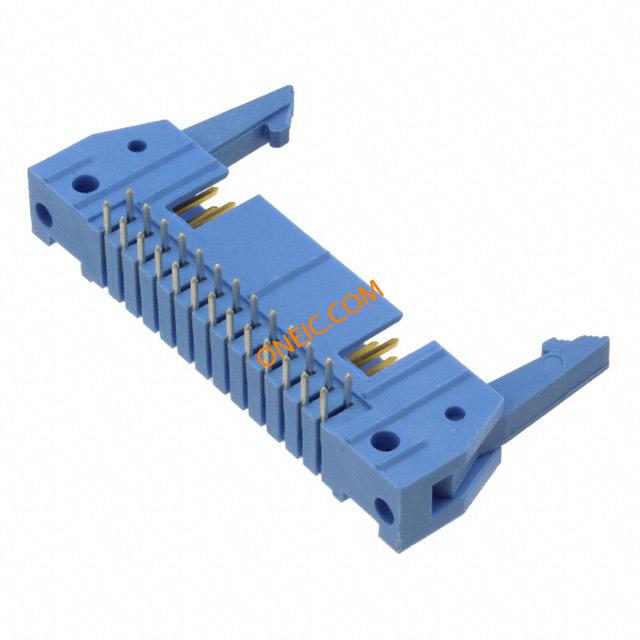

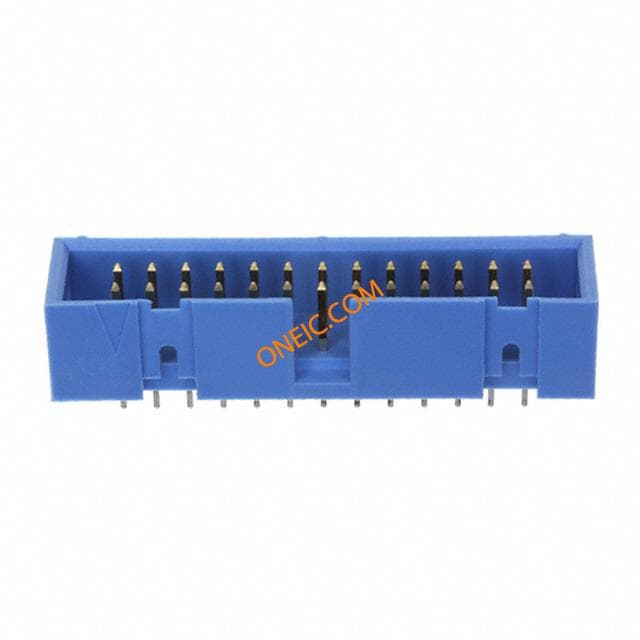

2-5499141-6

点击放大查看

2-5499141-6

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 26POS R/A POLAR GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 26P RA BLUE LARGE LATCH Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 26WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P RA LG LAT BLUE
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量40

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series额定电压250 V ac
开关功能Ejection击穿电压:500V
最大额定电流1A绝缘电阻:1Gohm

机械参数

颜色Blue间距2.54 mm
重量0.0817材料（通用）:Glass Reinforced Thermoplastic
包装方式Tray排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
柱间距2.54 x 2.54 [.100 x .100]极化Center
第二连接器With外壳颜色Blue
安装类型Right Angle连接器类型Universal Ejection Pin Headers
接触镀层Gold Over Nickel紧固类型Latch Lock/Eject Hooks
排数2封装形式4-Sided
锁定特性Latch外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic Glass Reinforced
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数26接触件端接:Through Hole Right Angle
位数26接触长度 - 配合0.240" (6.10mm)
端子柱长度2.79 [0.110]接触镀层厚度30µin (0.76µm)
第一连接器安装类型:PC Board

产品信息

类型Ejector Header连接器性别HDR
系列AMP LATCH极性:Bump/Clip
产品子类型Headers其他规格With
加载位置数All

环境参数

插拔次数:200温度额定值Standard
工作温度-55 – +125

文档与媒体

在线文档
2-5499141-6?RQPN=2-5499141-6
在线文档
2-5499141-6
