2-1761603-6

点击放大查看

2-1761603-6

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 16 POS VERT LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 16WAY HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:16; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 16P VERT BLUE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series击穿电压:500V
最大额定电流1 A绝缘电阻:1Gohm

机械参数

颜色Blue深度9.22 mm
间距2.54 mm高度9.22 mm
重量0.002材料（通用）:Glass Reinforced Thermoplastic
包装方式Bulk遮蔽类型Yes
方向straight排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
引脚间距:2.54mm柱间距2.54 x 2.54 [.100 x .100]
极化Center, Military第二连接器Without
触点形状Square外壳颜色Blue
安装类型Vertical连接器类型Pin Header
接触镀层Gold Over Nickel安装样式Through Hole
排数2封装形式4-Sided
外形（宽 x 高）Low触头材料Phosphor Bronze
壳体材料Thermoplastic总长度3.81 [0.150]
包装数量1主要材料InterconnectSystem
尺寸/外形0.64 [.025]连接器 - 电缆socket
端接样式Through Hole第一触头极性Pin (Male)
连接器颜色blue配接方向With
触点数16接触件端接:Solder
位数16安装孔直径:0.9mm
接触长度 - 配合0.240" (6.10mm)端子柱长度2.60 [0.102]
接触镀层厚度30µin (0.76µm)触点材料 - 镀层gold plated
第一连接器安装类型:PC Board第一连接器安装特征2x8

产品信息

SPG1类型Shrouded Header
连接器性别HDR系列2-1761603
极性:Bump制造商全称AMP-LATCH
产品子类型Headers单元数量1
其他规格Without加载位置数All

环境参数

插拔次数:200温度额定值Standard
工作温度:125°C

文档与媒体

在线文档
2-1761603-6

相关型号

1658621-3

1658621-3

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 16POS W/POL 15 GOLD 16way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 16P NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 16WAY Connector;Novo;16;RibbonCable;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:16; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 16P, 1658621-3, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 16路 2.54mm节距 直角 电缆安装 母 IDC 连接器 16 NOVO MIL/CTR 15DP,LEAD FREE

¥5.7433
详情
2-1761607-6

2-1761607-6

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 16POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR 16P RA LG LAT LPRO Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 16WAY 16waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P RA LG LAT

¥18.1200
详情
1658527-7

1658527-7

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS .100 GOLD 16 way IDC bump polarised socket Connector 16 way socket IDC 622 series Headers & Wire Housings 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 622 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 622-1641LF FEM SOCKT,LEAD FREE

¥11.4750
详情
1658620-3

1658620-3

te connectivity / amp

Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 16POS 15 GOLD Connector,Receptacle,Novo,16,Gold(15) Headers & Wire Housings MLTRY PLRZD RECPT 16 NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM Connector,Receptacle;Novo;16;Gold(15);Tin-Lead;0.100in.x0.100in. 16 NOVO MIL 15DP, LEAD FREE

¥4.7627
详情
2-1761605-6

2-1761605-6

te connectivity / amp

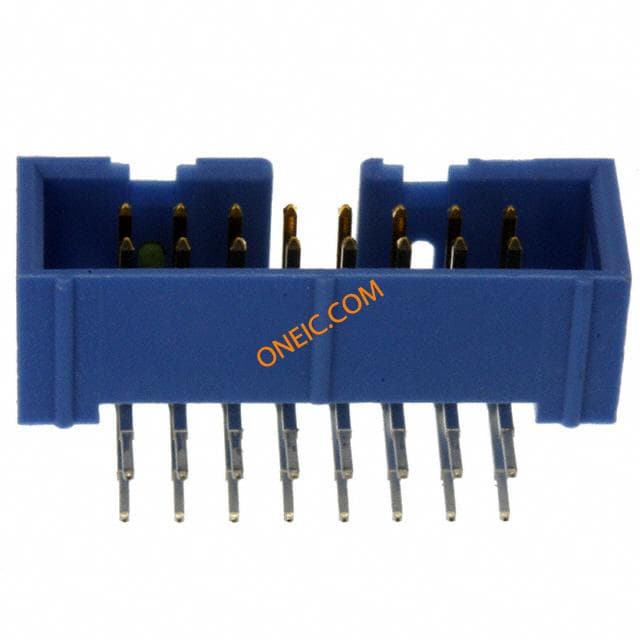

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 16POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 16 POS R/A LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 16WAY 16wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P RA BLUE

¥18.1200
详情
2-1658526-9

2-1658526-9

TE Connectivity / AMP

ヘッダ & ワイヤハウジング 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS VERT GOLD Ribbon cable conn.rcpt.16way,2.54mm,blue Headers & Wire Housings 16 POS RECPT 30AU Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 609 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-1630LF=FSKT IDC S 16 30AU

¥18.1200
详情
2516-6002UB

2516-6002UB

3M Electronic Solutions Division

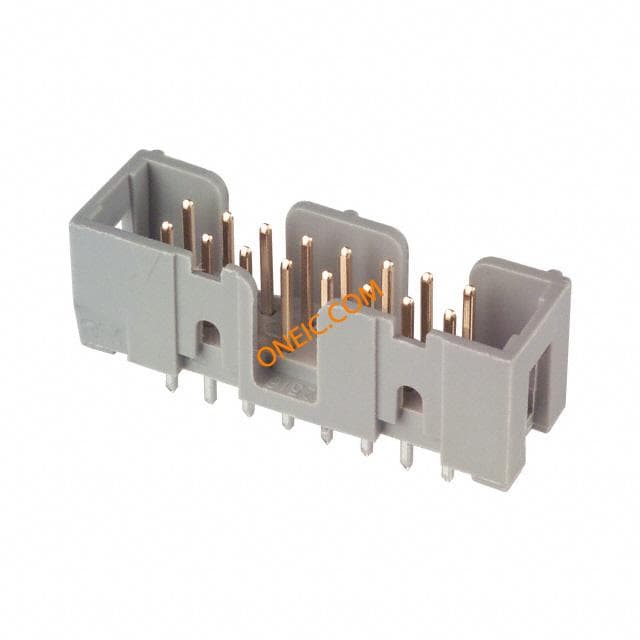

Headers & Wire Housings 16P STRT SOLDER TAIL .100" × .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series SHROUDED HEADER 16 POS STRAIGHT WIRE-BOARD CONN, HEADER, 16POS, 2.54MM PROFILEHEADER;STRAIGHTSOLDERPINS;16CONTACTS
