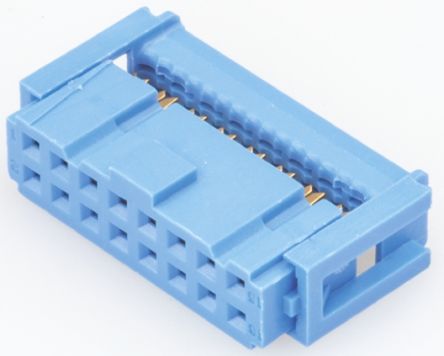

1658527-7

点击放大查看

1658527-7

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS .100 GOLD 16 way IDC bump polarised socket Connector 16 way socket IDC 622 series Headers & Wire Housings 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 622 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 622-1641LF FEM SOCKT,LEAD FREE
分类
分立半导体元件分立半导体触发二极管
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - 622 Series额定电压500 V dc
开关功能Unlatched击穿电压:500V
最大额定电流1A绝缘电阻:1Gohm
触点额定电流:1A

机械参数

颜色Blue深度7.05 mm
间距2.54 mm高度12.1 mm
重量0.002材料（通用）:Glass Feinforced Thermoplastic
包装方式Bulk导线类型Ribbon Cable
出线方向With导线线规26-28 AWG, Stranded or Solid
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket柱间距2.54 x 2.54 [.100 x .100]
极化Center & Military第二连接器Without
外壳颜色Blue安装类型No
电缆端类型Without连接器类型622 Series
接触镀层Gold Over Nickel安装样式Cable
排数2触头材料Beryllium Copper
壳体材料Thermoplastic总长度24.82 mm
安装特性Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数16
接触件端接:IDC / IDT位数16
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别RCP
系列622产品特性Feed Through; Polarizing Key, Strain Relief
极性:Bump/Clip产品子类型Socket Headers
连接类型Ribbon Cable

环境参数

插拔次数:200工作温度+125°C

文档与媒体

在线文档
1658527-7?RQPN=1658527-7

相关型号

2-1761607-6

2-1761607-6

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 16POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR 16P RA LG LAT LPRO Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 16WAY 16waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P RA LG LAT

¥18.1200
详情

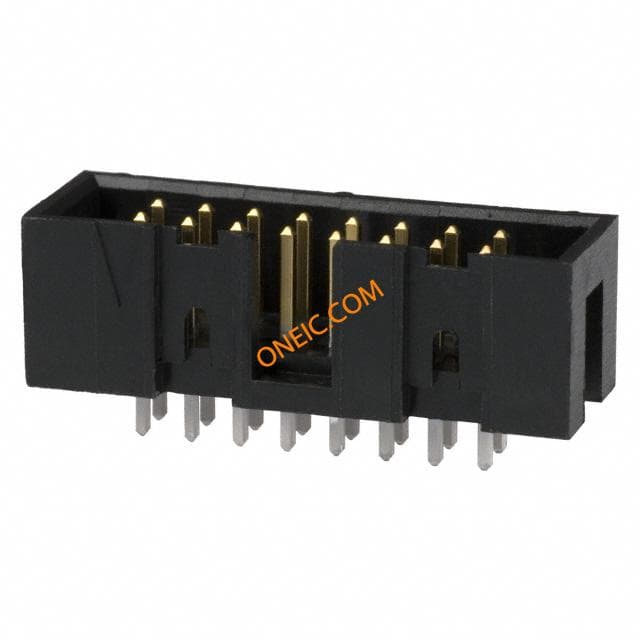

1761603-6
