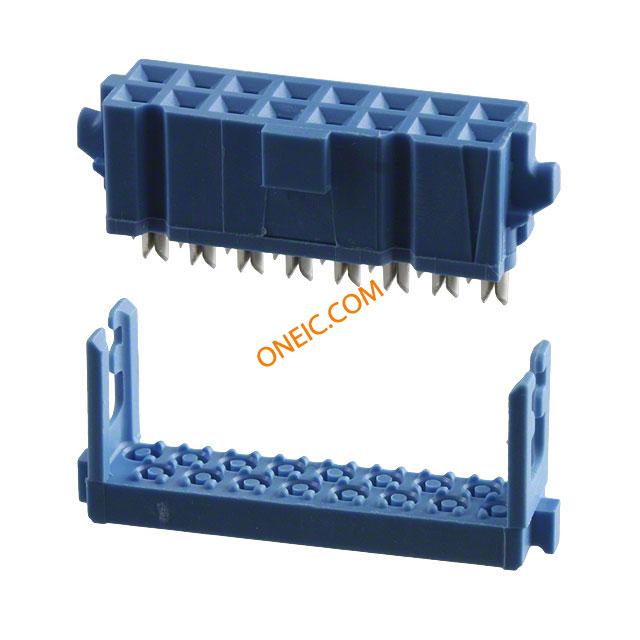

2-1658526-9

点击放大查看

2-1658526-9

制造商
TE Connectivity Ltd.
描述ヘッダ & ワイヤハウジング 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS VERT GOLD Ribbon cable conn.rcpt.16way,2.54mm,blue Headers & Wire Housings 16 POS RECPT 30AU Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 609 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-1630LF=FSKT IDC S 16 30AU
分类
连接器解决方案压接与焊接端子/接头压接端子（通用）
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH其他名称216585269
产品类别Headers & Wire Housings标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - 609 Series介电强度:1000V/m
最大额定电流1A绝缘电阻:1Gohm

机械参数

颜色Blue深度7.05 mm
间距0.100" (2.54mm)高度12.37 mm
重量0.0207包装方式Bulk
导线类型Ribbon Cable出线方向Without
导线线规28-30 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
柱间距:2.54mm极化Center & Military
第二连接器Without外壳颜色Blue
安装类型No电缆端类型Without
连接器类型AMP-LATCH接触镀层Tin over Nickel
安装样式Cable排数2
触头材料Beryllium Copper壳体材料Thermoplastic Glass Reinforced
总长度24.79 mm安装特性Without
电缆端接方式IDC第一触头极性Socket (Female)
连接器颜色:Blue配接方向With
触点数16接触件端接:IDC / IDT
位数16中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别Receptacle
系列AMP-LATCH产品特性Polarizing Key
产品子类型Receptacles / Sockets - PCB连接类型Ribbon Cable
带调制解调器控制Yes

环境参数

工作温度+125°C

相关型号

5103308-3

5103308-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 16P 2 ROW HEADER LP Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRT 16WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;16;0.100x0.100in.;1A Pin header DIN 41651 16P, 5103308-3, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 16P VERT BLACK

¥4.8328
详情
5102153-3

5102153-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 16 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM Header;UniversalEjectionPinHeader;16;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 16P VERT

¥4.9728
详情
1761607-6

1761607-6

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 16POS Headers & Wire Housings 100X100 HDR 2X008P R/A LOW PROFILE Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 16P RA LG LAT BLK

¥14.6880
详情
5102160-3

5102160-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Pin header DIN 41651 16P, 5102160-3, TE Connectivity A/L UNIV HDR 16P RA

¥8.5680
详情
5103310-3

5103310-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 16POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X008P R/A LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;16;Gold A/L LOW PRO HDR 16P RA BLACK

¥4.9640
详情

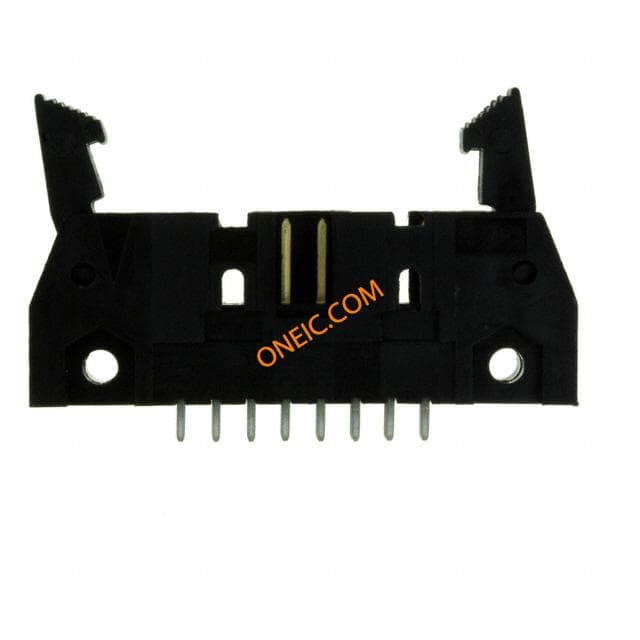

5499910-3

5499910-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD TE Connectivity 5499910 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 16 POS HDR 15AU W/SHORT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,16POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P VERT SHT LAT

¥9.5200
详情
1761685-6

1761685-6

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 16POS VERT GOLD Headers & Wire Housings IDC LOW PRO HDR 16P VERT SHT LAT Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 16P VERT SHT LAT

¥29.9356
详情

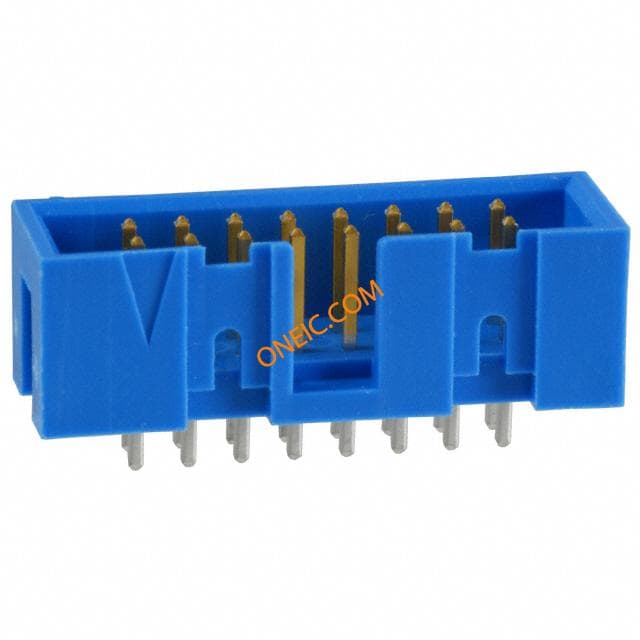

2-1761603-6

2-1761603-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 16 POS VERT LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 16WAY HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:16; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 16P VERT BLUE

¥9.0600
详情
5103309-3

5103309-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings HDR VERT DOUBLE 16P low profile Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS GOLD Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM HEADER,PIN,AMP-LATCH,16POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 16P, 5103309-3, TE Connectivity A/L LOW PRO HDR 16P VERT BLACK

¥5.4631
详情
1761606-6

1761606-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 16POS TE Connectivity 1761606 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X008P VERT LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P VERT LG LAT BLK

¥18.1200
详情
5102155-3

5102155-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X008P VERT A/L UNIV HDR 16P VERT A/L UNIV HDR 16P VERT Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥5.5332
详情
1-111504-6

1-111504-6

te connectivity / amp

Conn Ejector Header PL 16 POS 2.54mm IDT RA Cable Mount Bulk Headers & Wire Housings 016 UNIV I/O 30DP NO EARS LTCH Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 16POS UNIV I/O NO EARS Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = Universal I/O16 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 16WAY 016 UNIV I/O 30DP NO EARS LTCH

¥45.3000
详情
5104340-3

5104340-3

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADR BRKWAY .100 16POS R/A Headers & Wire Housings A/L LOW PRO HDR 16P RA HT GRAY A/L LOW PRO HDR 16P RA HT GRAY A/L LOW PRO HDR 16P RA HT GRAY Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥7.4120
详情

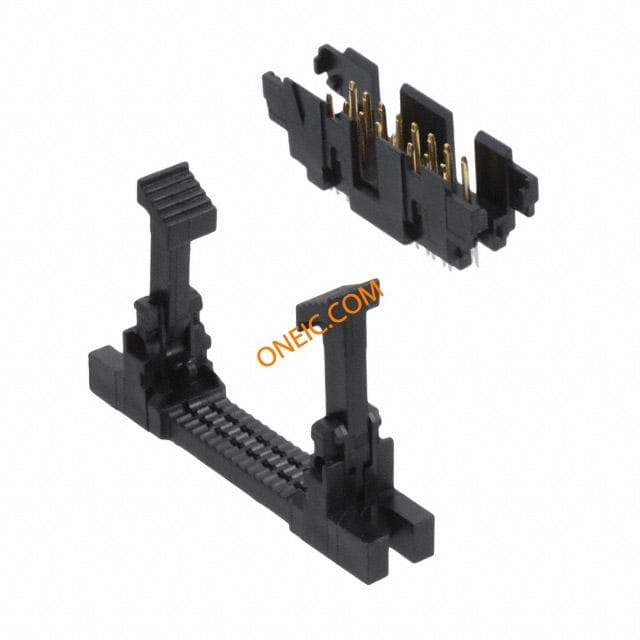

1-111506-8

1-111506-8

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 16POS UNIV I/O SLOT TE Connectivity 1-111506 Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 016 UNIV I/O 30DP SLOT LTCH Conn Ejector Header HDR 16 POS 2.54mm IDT RA Cable Mount Bulk Search Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 16WAY Ribboncableconn.male16way,2.54mm,blk AMP-LATCH 系列 2行 16路 2.54mm节距 直角 公 印刷电路板管座, 面板安装 016 UNIV I/O 30DP SLOT LTCH

¥36.2400
详情
2-1761608-6

2-1761608-6

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 16POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 16P VERT SHORT LATCH Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDCHDRS501W&W/O,IDCLOWPROHDR16PVERTSHTLATBLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P VERT SHT L

¥14.9600
详情

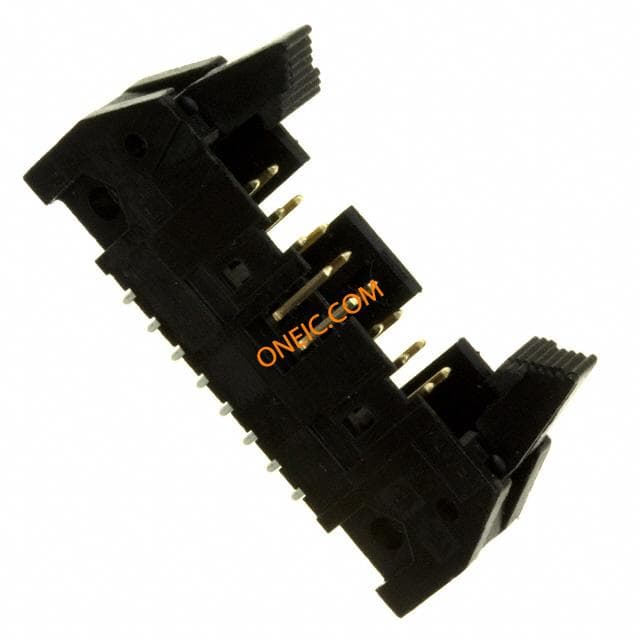

5499160-3

5499160-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Headers & Wire Housings 16 POS HDR 30AU W/SHORT LATCHES Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile16 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,16POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 16P VERT SHT LAT

¥9.9960
详情
1-111492-7

1-111492-7

te connectivity / amp

Conn Ejector Header M 16 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 16POS UNIV I/O NO EARS Headers & Wire Housings 016 UNIV I/O 30DP NO EARS LTCH 016 UNIV I/O 30DP NO EARS LTCH 016 UNIV I/O 30DP NO EARS LTCH Search Keywords:input/output, paddleboard, paddle board

¥37.2163
详情
5499923-3

5499923-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X008P VERT LOW PRO W/EJECT Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 16POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 16P VERT LG LAT

¥9.0600
详情

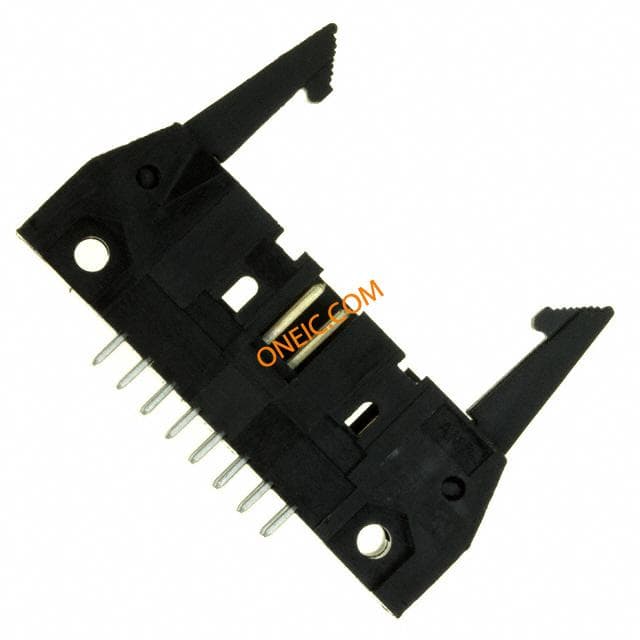

5499206-3

5499206-3

te connectivity / amp

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 16POS .100 GOLD Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 16WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,16POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 16P VERT LG LAT

¥9.0600
详情

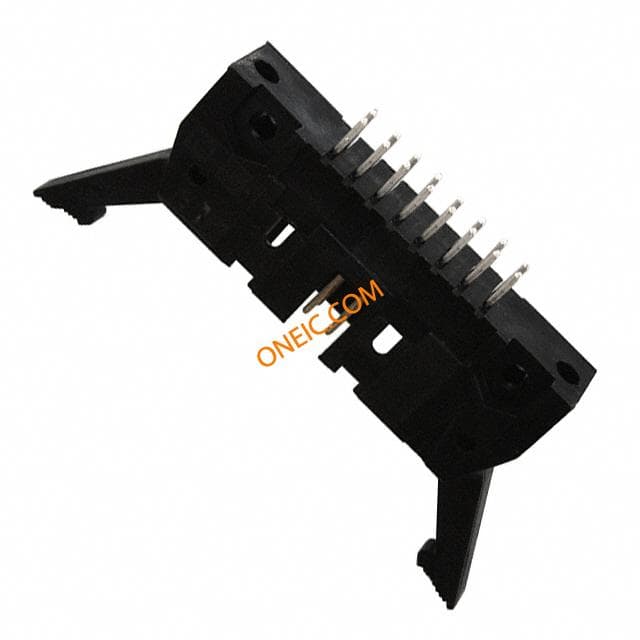

5102321-3
