2-1586019-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RCPT HOUSING 20POS 4.2MM Pin & Socket Connectors HSG REC 2X10C F/P V0 Conn Housing RCP 20 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 20UL 94V-0Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, SOCKET, 20WAY RECEPTACLE,HOUSING,VAL-U-LOK,20POS,DUALROW,UL94V-0 20P RCPT VAL-U-LOK V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 VAC | 最大额定电流 | 9 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 20 mm |
| 间距 | 4.2 mm | 重量 | 0.025 |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 壳体材料 | Nylon | 总长度 | 43.6 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 20 |
| 接触件端接 | Crimp | 位数 | 20 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Val-U-Lok |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Housing |
| 电路数 | 20 | ||
文档与媒体
相关型号
794958-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 26-22AWG BRASS TIN Crimp skt contact 26-22 awg tin Pin & Socket Connectors SOCKET 26-22 Reel of 5000 794958-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, CRIMP, SOCKET, 26-22AWG Contact,Socket,VAL-U-LOK,22-26AWG,Brass VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡镀镍触点 VAL-U-LOK SKT BR SN 22-26AWG
2-1586039-0
te connectivity / amp
Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 20P Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/PEGS 20P VAL-U-LOK VRT HDR W/P V2
2-1586041-0
te connectivity / amp

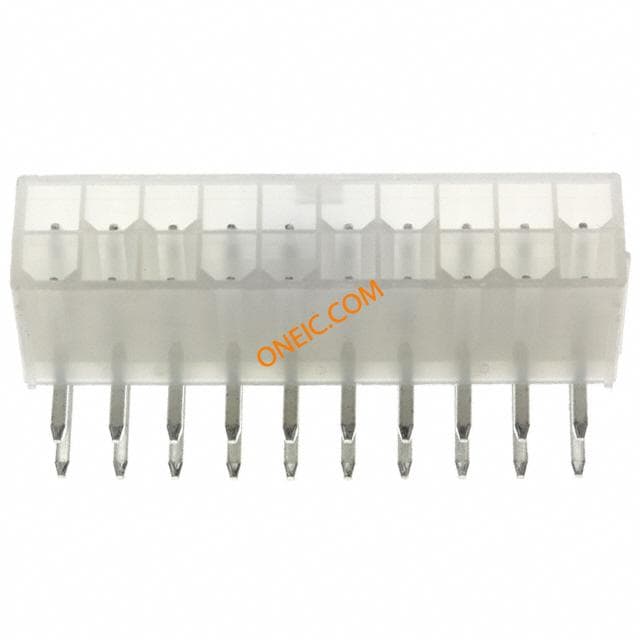

Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS R/A W/O PEGS TE Connectivity PE Series 4.2mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 9A Pin & Socket Connectors RA HDR W/O PEGS 20P Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 20WAY HEADER,RIGHTANGLE,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 9A , 通孔 20P VAL-U-LOK R/A HDR V2
2-1586040-0
te connectivity / amp
Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Tray VAL-U-LOK Series Connector System CONN HEADER 20POS VERT DUAL TIN Pin & Socket Connectors HDR 20P VT DUAL TIN Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Tray Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,20POS,DUALROW,UL94V-0,W/PEGS 20P VAL-U-LOK VRT HDR W/P V0
2-1586037-0
te connectivity / amp

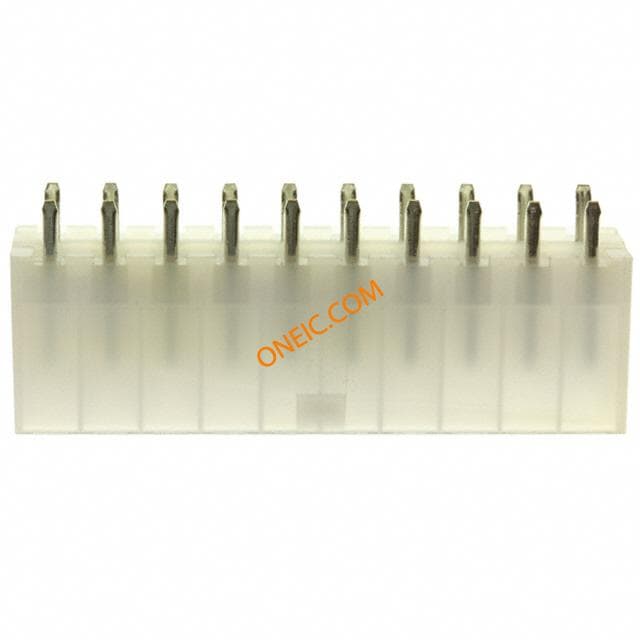

Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 20 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 20P Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 20UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 HEADER,VERTICAL,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 20路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 20P VERT HDR VAL-U-LOK V2
794956-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 18-22AWG PHOS BRZ TIN Contact female 0.2-0.8mm² Val-u-Lok 794956-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,TINPLATING VAL-U-LOK Series 18-24 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT PHBZ SN 22-18AWG
794958-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 22-26AWG PHOS BRZ TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact VAL-U-LOK SKT PHBZ SN 22-26AWG
2-1586043-0
te connectivity / amp

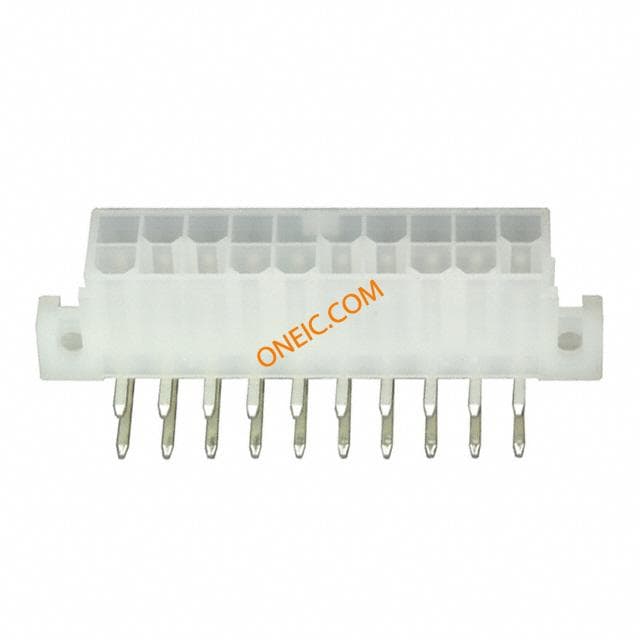

Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS R/A W/FLANGE Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,20POS,DUALROW,UL94V-2,SCREWMOUNT 20P VAL-U-LOK R/A HDR SCRMT V2
2-1586000-0
te connectivity / amp
Conn Housing PL 20 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 20POS FREE HANGING Pin & Socket Connectors FREE HANGING PLUG 20 Conn Housing PL 20 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING PLUG,FREEHANGING,VAL-U-LOK,20POS,DUALROW,UL94V-2 VAL-U-LOK Series 20 Position Male Lock Ramp Free Hanging Plug Housing 20P FH PLUG VAL-U-LOK V2
794956-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS TIN Crimp skt contact 22-18 awg tin Pin & Socket Connectors SOCKET 22-18AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, FEMALE, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL Contact,Socket,VAL-U-LOK,24-18AWG,Brass TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 22-18AWG
1586315-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN 4.2 PE series 22-18 awg contact socket Pin & Socket Connectors SOCKET 22-18AWG BRASS-TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 18AWG TO 22AWG, CRIMP 4.2SOCKET,BRASS-TIN22-18 Contact; female; 0.2÷0.8mm2; 18÷24AWG; VAL-U-LOK; tinned; crimped Crimp socket Female 22...18 AWG, 1586315-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 24-18 LP
794956-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT BR AU 22-18AWG
1586055-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONN SOCKET 16AWG BRASS TIN Pin & Socket Connectors VAL-U-LOK SKT BR SN Contact SKT Crimp ST Cable Mount Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 16AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,16AWG,TINPLATING 16 AWG Socket Crimp VAL-U-LOK Connector Contact VAL-U-LOK SKT BR SN 16AWG
2-794953-0
te connectivity / amp

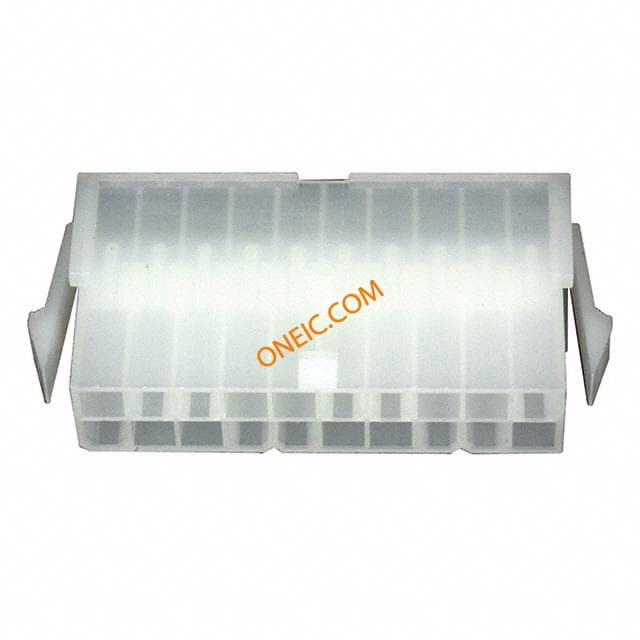

Conn Housing PL 20 POS 4.2mm ST VAL-U-LOK Series Connector System CONN PLUG 20POS PANEL MOUNT Pin & Socket Connectors PANEL MOUNT PLUG 20P Conn Housing PL 20 POS 4.2mm Crimp ST Panel Mount Conn Housing PL 20 POS 4.2mm Crimp ST Panel Mount Product Highlights:HousingPlug4.20 mm CenterlineNumber of Circuits = 20Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG HOUSING, PANEL MOUNT, 94V-2, 20WAY PLUG,PANELMOUNT,VAL-U-LOK,20POS,DUALROW,UL94V-2 20P PM PLUG VAL-U-LOK V2
