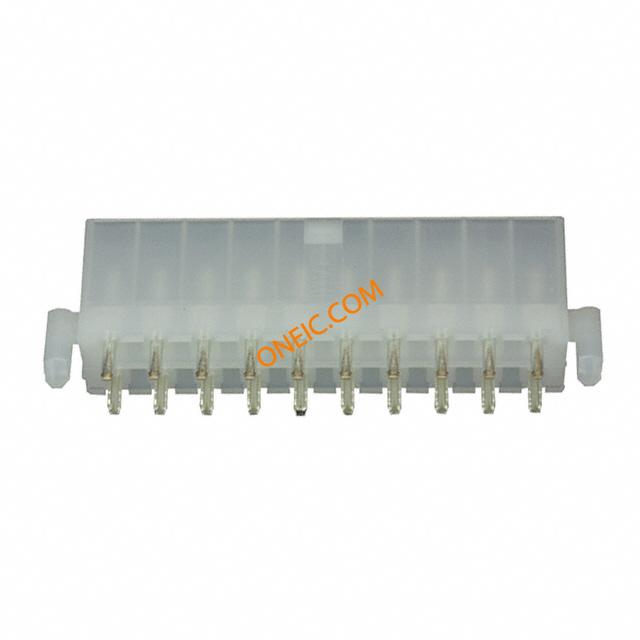

2-1586039-0

制造商	TE Connectivity Ltd.
描述	Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 20P Conn Power HDR 20 POS 4.2mm Solder ST Thru-Hole 20 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/PEGS 20P VAL-U-LOK VRT HDR W/P V2
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

其他名称	A30677	产品类别	Pin & Socket Connectors
标准包装数量	Trays	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	无铅定义	Wave solder capable to 240Â°C
CSA档案号	208567	标准编号	CSA, UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	UL阻燃等级	UL 94V-2
材料阻燃等级	UL 94V-2

电气参数

额定电压	600 V	供电电压	600
中心频率	带有	最大额定电流	9 A

机械参数

间距	4.2 mm	宽度	9.8 mm [ .386 in ]
高度	12.8 mm [ .504 in ]	长度	43.2 mm [ 1.7 in ]
密封型	Not Sealed	包装方式	Bulk
排间距	0.165" (4.20mm)	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Tin
紧固类型	Locking Ramp	安装样式	Through Hole
引脚数	20	排数	Dual
封装形式	Plug	触头材料	Brass
壳体材料	Nylon	安装特性	板锁
包装数量	120	面板安装类型	通孔 - 焊接
主要材料	InterconnectSystem	端接样式	Solder
第一触头极性	Pin (Male)	触点数	15
绝缘直径	1.2 – 3.1 mm [ .047 – .122 in ]	位数	20
安装孔直径	带有	接触件表面处理 - 配合	锡
典型触点布局	直插式	端子柱长度	3.5 mm [ .138 in ]
接触镀层厚度	80 µm [ 2.03 µin ]

产品信息

类型	Power	连接器性别	HDR
系列	PE	产品特性	Board Lock
制造商全称	VAL-U-LOK	产品子类型	Pin Header
电路数	20	选择性装载	No
应用细节	Power	加载位置数	All

环境参数

测试温度	标准件 - 非灼热丝	工作温度	-40 – 105 °C [ -40 – 221 °F ]
封装热阻	.063 mm [ 1.6 in ]
