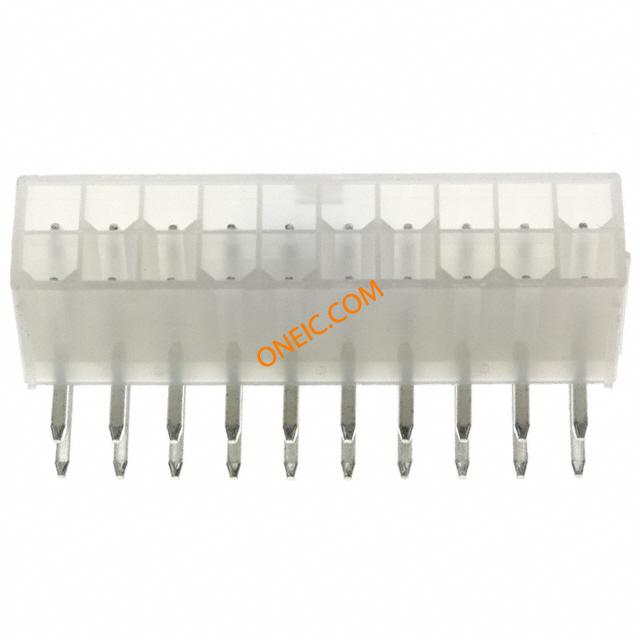

2-1586041-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 20POS R/A W/O PEGS TE Connectivity PE Series 4.2mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 9A Pin & Socket Connectors RA HDR W/O PEGS 20P Conn Power HDR 20 POS 4.2mm Solder RA Thru-Hole 20 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, RIGHT ANGLE, UL94V-2, 20WAY HEADER,RIGHTANGLE,VAL-U-LOK,20POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 9A , 通孔 20P VAL-U-LOK R/A HDR V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 9A |
机械参数
| 间距 | 4.2 mm | 重量 | 0.0705 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :4.2mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 材料表面处理 | :- |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 主要材料 | InterconnectSystem | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :White |
| 触点数 | 20 | 接触件端接 | :Solder |
| 位数 | 20 | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | CAD图纸 | 3D CAD Model |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Pin Header |
| 电路数 | 20 | 加载位置数 | All |
文档与媒体
相关型号
2-1586019-0
te connectivity / amp
Conn Housing RCP 20 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RCPT HOUSING 20POS 4.2MM Pin & Socket Connectors HSG REC 2X10C F/P V0 Conn Housing RCP 20 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 20UL 94V-0Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, SOCKET, 20WAY RECEPTACLE,HOUSING,VAL-U-LOK,20POS,DUALROW,UL94V-0 20P RCPT VAL-U-LOK V0
2-106527-0
te connectivity / amp

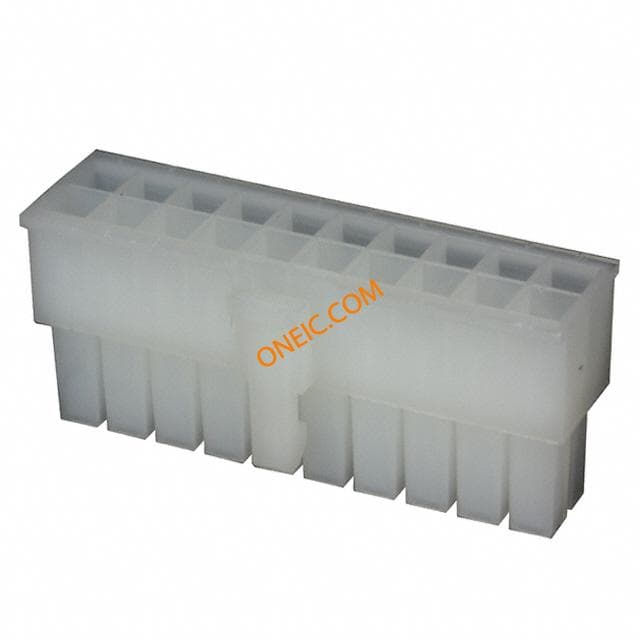

Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 20POS W/POSTIVE LOCK Pin & Socket Connectors 20P REC HSG 94V-2 AMP-DUAC Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 20UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 20P DUAC REC HSG
