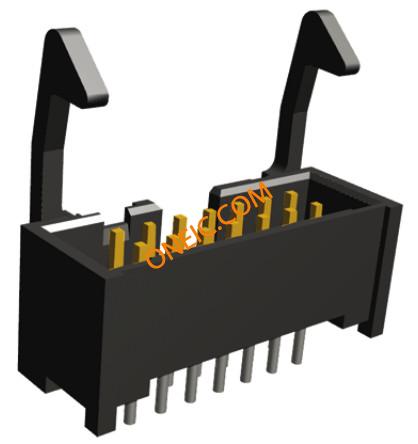

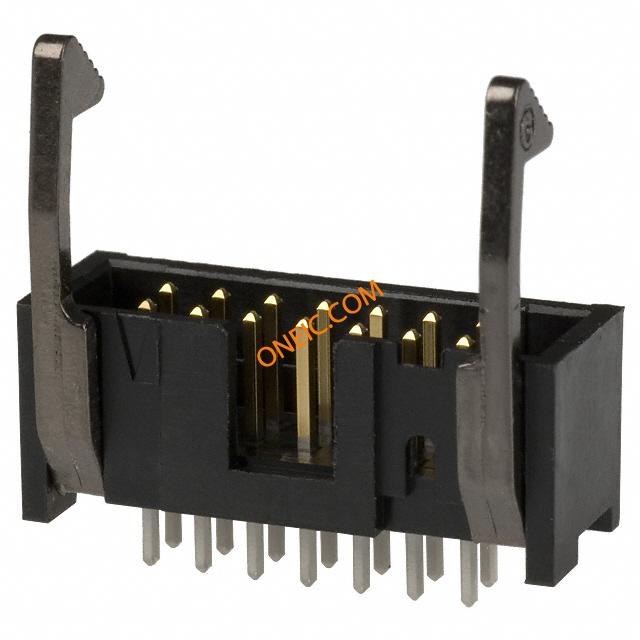

1761606-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 14POS Header Vertical IDC Pin 14 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT LG LA |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V |
| 开关功能 | Ejection | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 22.56 mm | 重量 | 0.003 |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Pin Header |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 3.81 [0.150] | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 14 | 接触件端接 | :Through Hole Vertical |
| 位数 | 14 | 接触长度 - 配合 | 0.237" (6.02mm) |
| 端子柱长度 | 2.60 [0.102] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
文档与媒体
相关型号
1658623-2
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 14POS GOLD Headers & Wire Housings .1CL IDC REC 2X07P MIL 30AU Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 14ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,14POSITION,WITHMATINGPOLARIZATION 14 NOVO MIL 30DP, LEAD FREE
1658620-2
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 14POS 15 GOLD Receptacle 14 way IDC Amp-Latch Headers & Wire Housings MLTRY PLRZD RECPT 14 NOVO Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 14ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,14POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 14路 2.54mm节距 母 IDC 连接器 , 电缆安装 14 NOVO MIL 15DP, LEAD FREE
1658526-8
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS VERT GOLD Ribbon cable conn.rcpt.14way,2.54mm.blue Headers & Wire Housings IDC RECPT 14 POS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 14ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY RibbonCableConnector,AMP-Latch,14Positions,Female TE Connectivity AMP-LATCH 609 系列 2行 14路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-1430LF FEM SOCKT,LEAD FREE
1658621-2
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 14POS W/POL 15 GOLD 14way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 14P NOVO Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 14WAY Connector,Receptacle;Novo;14;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:14; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 14P, 1658621-2, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 14路 2.54mm节距 直角 电缆安装 母 IDC 连接器 14 NOVO MIL/CTR 15DP,LEAD FREE
1658622-2
te connectivity / amp
Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 14POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 14P Headers & Wire Housings .1CL IDC REC 2X07P C&M 30AU Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,14pos. 14 NOVO MIL/CTR 30DP,LEAD FREE
1658526-9
te connectivity / amp
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS VERT GOLD W/SR Headers & Wire Housings IDC RECPT 14 POS W/ STRAIN RELIEF Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,14POSITION,MATINGPOLARIZATION 609-1441LF FEM SOCKT,LEAD FREE
