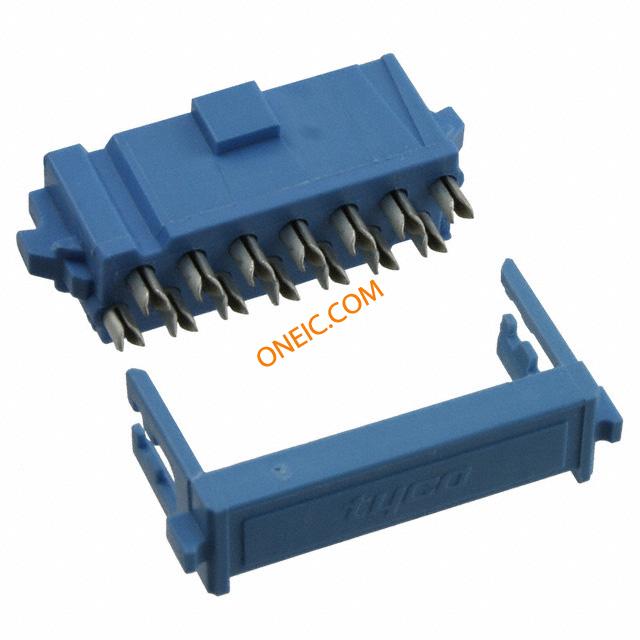

1658526-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS VERT GOLD Ribbon cable conn.rcpt.14way,2.54mm.blue Headers & Wire Housings IDC RECPT 14 POS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 14ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY RibbonCableConnector,AMP-Latch,14Positions,Female TE Connectivity AMP-LATCH 609 系列 2行 14路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-1430LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | 16585268 |
| 零件号别名 | 515-0116 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 609 Series | 介电强度 | :1000V/m |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
机械参数
| 颜色 | Blue | 深度 | 7.05 mm |
| 间距 | 2.54 mm | 高度 | 12.37 mm |
| 重量 | 0.04 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 28-30 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 柱间距 | :2.54mm | 极化 | Center & Military |
| 第二连接器 | Without | 外壳颜色 | Blue |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | AMP-LATCH | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Thermoplastic Glass Reinforced |
| 总长度 | 22.25 mm | 安装特性 | Without |
| 电缆端接方式 | IDC | 端接样式 | Through Hole |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Blue |
| 配接方向 | With | 触点数 | 14 |
| 接触件端接 | :IDC / IDT | 位数 | 14 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | AMP-LATCH | 产品特性 | Polarizing Key |
| 产品子类型 | Receptacles / Sockets - PCB | 连接类型 | Ribbon Cable |
| 带调制解调器控制 | Yes | ||
环境参数
| 工作温度 | +125°C | ||
相关型号
1-111492-6
te connectivity / amp
Conn Ejector Header M 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 14POS UNIV I/O NO EARS Headers & Wire Housings 014 UNIV I/O 30DP NO EARS LTCH 014 UNIV I/O 30DP NO EARS LTCH 014 UNIV I/O 30DP NO EARS LTCH Search Keywords:input/output, paddleboard, paddle board
5103308-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 14WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;14;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P VERT BLACK
5103310-2
te connectivity / amp
Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK
5102154-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Pin header DIN 41651 14P, 5102154-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 14P VERT
1-111446-5
te connectivity / amp
Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 14POS 30AU NO LATCH Headers & Wire Housings 14 UNIV I/O NO EARS Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/O14 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,PLUG,AMP-LATCH,UNIVERSALI/O,14POSITION,TERMINATETORIBBONCABL 14 UNIV I/O, NO EARS,LEAD FREE
5499913-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A-LUNIVHDRAYW/LTH,A/LUNIVHDR14PRASHTLAT TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA SHT LAT
5102153-2
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Header,UniversalEjectionPinHeader Headers & Wire Housings 14 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;14;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 14P VERT
1761609-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings IDC LOW PRO HDR 14P RA SHT LAT BLK Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A .100 Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDCLOWPROHDR14PRASHTLATBLK IDC LOW PRO HDR 14P RA SHT LAT
1761607-5
te connectivity / amp
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 14POS TE Connectivity 1761607 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT BLK

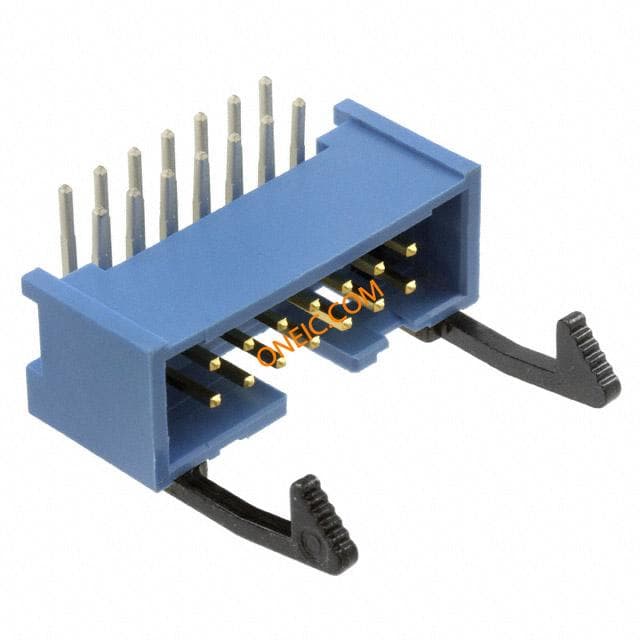

2-1761607-5
