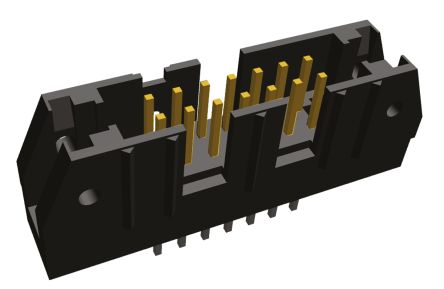

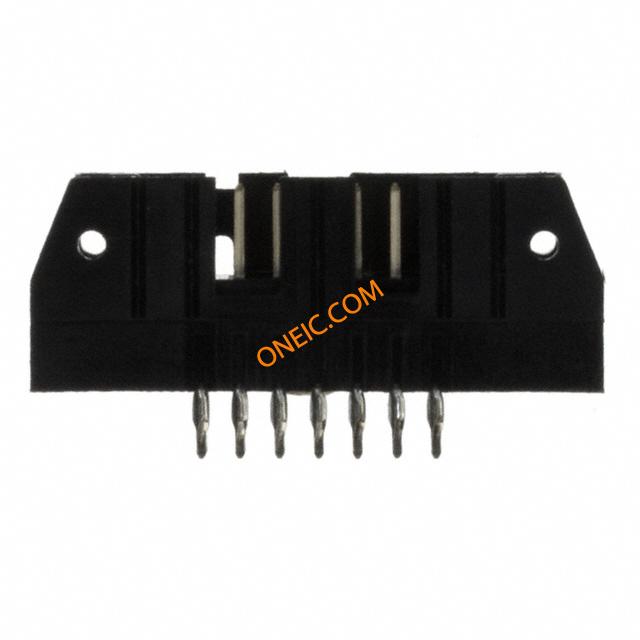

1658694-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 按压安装端接, 1A , 通孔 A/L UNIV HDR 14P ACT PIN |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 厚度 | 2.36 â 3.18 [0.093 â 0.125] |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Dual Polarizing Bar, Military | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 尺寸/外形 | 0.64 x 0.76 [.025 x .030] |
| 配接方向 | With | 触点数 | 14 |
| 接触件端接 | :Press Fit Vertical | 位数 | 14 |
| 接触长度 - 配合 | 0.201" (5.10mm) | 端子柱长度 | 4.42 [0.174] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Pin headers in 10- and 14-position sizes have only one slot for snap-in polariz | 类型 | Ejector Header |
| 连接器性别 | HDR | 系列 | :AMP-LATCH |
| 其他规格 | Without | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | ||
