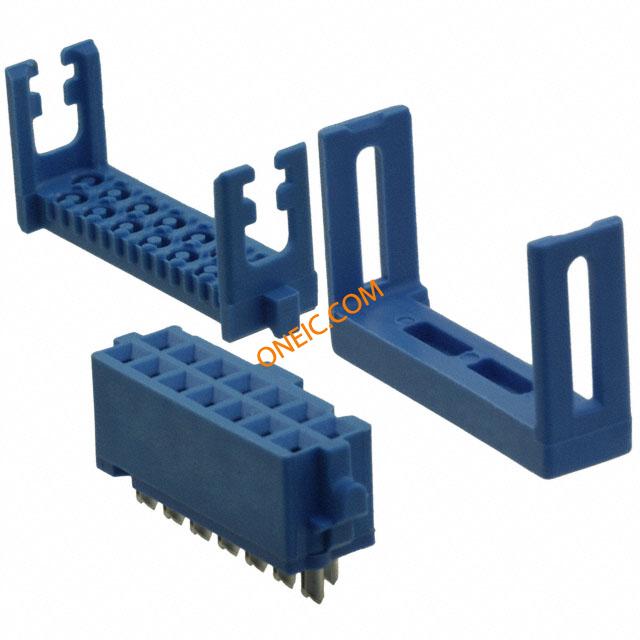

1658526-9

点击放大查看

1658526-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 14POS VERT GOLD W/SR Headers & Wire Housings IDC RECPT 14 POS W/ STRAIN RELIEF Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 14ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 14WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,14POSITION,MATINGPOLARIZATION 609-1441LF FEM SOCKT,LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH其他名称16585269
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - 609 Series击穿电压:500V
最大额定电流1/Contact A绝缘电阻:1Gohm
触点额定电流:1A

机械参数

颜色Blue深度7.05 mm
间距2.54 mm高度12.37 mm
重量0.004材料（通用）:Glass Feinforced Thermoplastic
包装方式Bulk导线类型Ribbon Cable
出线方向With导线线规28-30 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket柱间距:2.54mm
极化Center & Military第二连接器Without
外壳颜色Blue安装类型No
电缆端类型Without连接器类型AMP-LATCH
接触镀层Gold Over Nickel安装样式Cable
排数2触头材料Beryllium Copper
壳体材料Thermoplastic Glass Reinforced总长度22.25 mm
安装特性Without主要材料InterconnectSystem
电缆端接方式IDC端接样式Through Hole
第一触头极性Socket (Female)配接方向With
触点数14接触件端接:IDC / IDT
位数14中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别F
系列AMP-LATCH产品特性Polarizing Key, Strain Relief
极性:Bump/Clip制造商全称AMP-LATCH
产品子类型Receptacles / Sockets - PCB连接类型Ribbon Cable
带调制解调器控制Yes

环境参数

插拔次数:200工作温度-55C to 125C

相关型号

2-1761603-5

2-1761603-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 14 POS VERT LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 14WAY HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:14; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT BLUE

¥9.0600
详情
5103308-2

5103308-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 14P low profile Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 14WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;14;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P VERT BLACK

¥3.8522
详情
5103310-2

5103310-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;14;Gold A/L LOW PRO HDR 14P RA BLACK

¥4.2160
详情
5102154-2

5102154-2

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Headers & Wire Housings 14 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM Pin header DIN 41651 14P, 5102154-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 14P VERT

¥4.3425
详情
1-111446-5

1-111446-5

te connectivity / amp

Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 14POS 30AU NO LATCH Headers & Wire Housings 14 UNIV I/O NO EARS Conn IDC Connector PL 14 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/O14 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,PLUG,AMP-LATCH,UNIVERSALI/O,14POSITION,TERMINATETORIBBONCABL 14 UNIV I/O, NO EARS,LEAD FREE

¥28.2880
详情
1761607-5

1761607-5

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 14POS TE Connectivity 1761607 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P R/A LOW PROFILE Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT BLK

¥14.6880
详情
2-1761607-5

2-1761607-5

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings LPRO HDR 14P RA LG LAT Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 14WAY 14waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT

¥18.1200
详情
2-1761605-5

2-1761605-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 14POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 14 POS R/A LOW PROFILE Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 14WAY 14wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA BLUE

¥20.1416
详情
1761681-5

1761681-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 14POS VERT GOLD TE Connectivity 1761681 Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 14P VERT HT BLACK Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 2.54mm,Header,vert,shrd,DR,14W,Sn TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT HT BLACK

¥4.6376
详情
5104340-2

5104340-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A .100 GOLD Headers & Wire Housings HDR 14P R/A LO PRO Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P RA HT

¥10.5400
详情
5104338-2

5104338-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO CONN HEADER LOPRO STR 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile14 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L LOW PRO HDR 14P VERT HT

¥7.8880
详情
2-5102322-2

2-5102322-2

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS R/A GOLD A/L UNIV HDR 14P RA LG LAT BLUE

¥8.7162
详情
5499786-2

5499786-2

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 14POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 14 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 14waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P RA LG LAT

¥8.5000
详情
5102321-2

5102321-2

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X007P VERT EJE Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,14POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 14P VERT LG LAT

¥9.0600
详情
1761606-5

1761606-5

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 14POS Header Vertical IDC Pin 14 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X007P VRT LPRO Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,14POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 14P VERT LG LA

¥18.1200
详情
1658694-7

1658694-7

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 14POS .100 GOLD Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 14POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 按压安装端接, 1A , 通孔 A/L UNIV HDR 14P ACT PIN

¥11.1119
详情
5103311-2

5103311-2

te connectivity / amp

Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER LOPRO R/A 14POS GOLD Conn Shrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 14POS, 2ROW Pin header DIN 41651 14P, 5103311-2, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 14P RA BLACK

¥7.6840
详情
2-5499206-2

2-5499206-2

te connectivity / amp

Conn Ejector Header HDR 14 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings UNIV HDR 14P VT BLU LARGE LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER 14POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Straight PCB Header, Solder Termination, 1A Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 142.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 14waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 14P VERT LG LAT BLUE

¥13.4640
详情

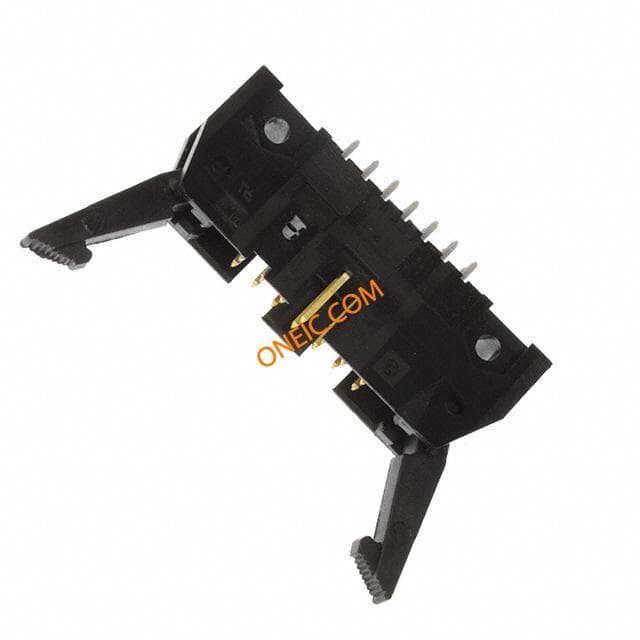

5499206-2
