1757819-9

点击放大查看

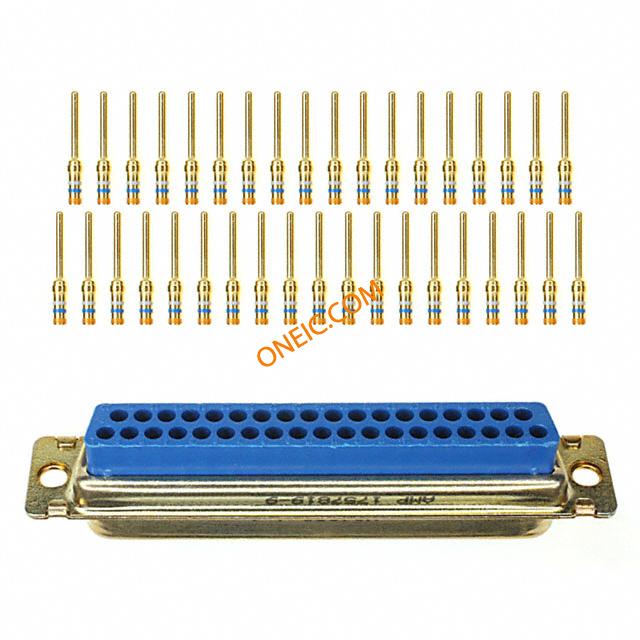

1757819-9

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port D-Sub Standard Connectors 37 POS PLUG, CRIMP STD DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn D-Subminiature PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 37Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, PLUG CONN D-SUB PLUG 37POS CRIMP Conn;D-Sub;CablePlug;37Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,PLUG,STD,109,ZN,4,CT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/4-4产品类别D-Sub Standard Connectors
标准包装数量Bulk

合规参数

RoHSRoHS Compliant标准MIL-C-24308
海关税号85366910抗辐射加固No
资质认证No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant认证机构标志Yes

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite 109 Series连接器阻抗No
最大额定电流7.5A

机械参数

颜色Blue深度16.81 mm
高度12.93 mm重量0.01
材料（通用）Stainless Steel包装方式Bulk
外壳尺寸4导线线规20
端接方式Crimp触点尺寸20
触头类型Crimp Snap-in非磁性No
安装类型Panel Mount外壳镀层Zinc
行程角度Straight连接器类型Crimp
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
安装样式Wire引脚数With
排数2外壳材料（壳体）Steel
连接器样式D-Sub本体材料:Metal
触头材料Copper Alloy壳体材料Polyester
总长度69.69 mm主要材料D-Subminiature
端接样式Crimp触点数37
接触件端接:Crimp位数37
衬套/护套类型No安装孔直径3.05 [.120]
外壳材料及表面处理Steel, Yellow Chromate Plated Zinc外壳尺寸，连接器布局4 (DC, C)

产品信息

备注Size 20 contacts supplied with connectors are loose piece.类型D-Subminiature
连接器性别PIN系列109
密度Standard制造商全称AMP
产品子类型Connector连接类型Wire
端口数1 Port设备部件号M24308/4-4

环境参数

工作温度-55C to 125C
