点击放大查看

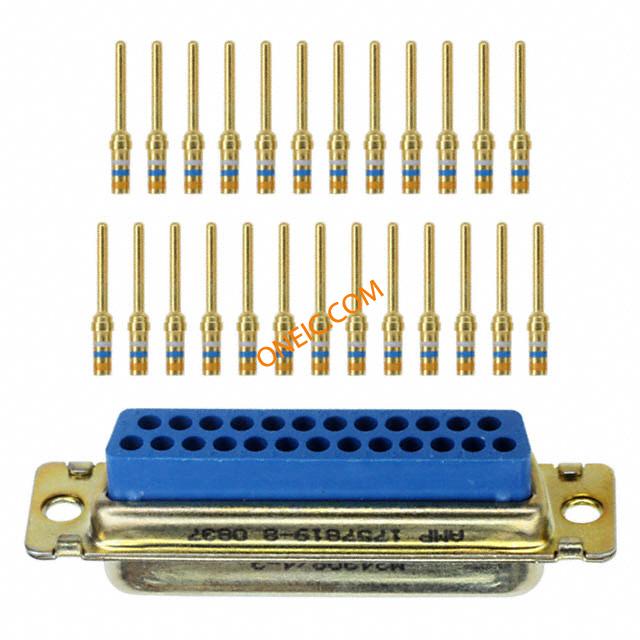

1757819-8

制造商	TE Connectivity Ltd.
描述	Conn D-Subminiature PIN 25 POS Crimp ST Panel Mount 25 Terminal 1 Port D-Sub Standard Connectors 25 POS PLUG, CRIMP STD DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn D-Subminiature PIN 25 POS Crimp ST Cable Mount 25 Terminal 1 Port Conn D-Subminiature PIN 25 POS Crimp ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 25Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, PLUG, 25POS, STEEL CONN D-SUB PLUG 25POS CRIMP Conn;D-Sub;CablePlug;25Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,PLUG,STD,109,ZN,3,CT
分类	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	M24308 M24308/4-3	产品类别	D-Sub Standard Connectors
标准包装数量	Bulk

合规参数

RoHS	RoHS Compliant	标准	MIL-C-24308
海关税号	85369010	抗辐射加固	No
资质认证	No	无铅定义	Wave solder capable to 240Â°C, Wave solder capable to 260Â°C, Wave solder c
RoHS/ELV合规状态	RoHS compliant, ELV compliant	认证机构标志	Yes

电气参数

连接器阻抗

最大额定电流

7.5A

机械参数

颜色	Blue	深度	16.36 mm
高度	12.93 mm	重量	0.014
材料（通用）	Stainless Steel	包装方式	Bulk
出线方向	Straight	外壳尺寸	3
导线线规	20	端接方式	Crimp
触点尺寸	20	触头类型	Crimp Snap-in
非磁性	No	安装类型	Straight
外壳镀层	Zinc	行程角度	Straight
连接器类型	Crimp	接触镀层	Gold
法兰特征	Housing/Shell (Unthreaded)	外壳涂层	Zinc
安装样式	Wire	引脚数	With
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub	本体材料	:Metal
触头材料	Copper Alloy	壳体材料	Steel
总长度	53.42 mm	主要材料	D-Subminiature
端接样式	Crimp	触点数	25
位数	25	外壳尺寸-插件	:3
衬套/护套类型	No	安装孔直径	3.05 [.120]
外壳材料及表面处理	Steel, Yellow Chromate Plated Zinc	外壳尺寸，连接器布局	3 (DB, B)

产品信息

备注	Size 20 contacts supplied with connectors are loose piece.	类型	D-Subminiature
连接器性别	Male	系列	109
密度	Standard	制造商全称	AMP
产品子类型	Connector	连接类型	Wire
端口数	1 Port	应用细节	TrueMil
设备部件号	M24308/4-3	适用产品/相关产品	:Size 20 Crimp Snap-in Contacts

环境参数

工作温度

-55°C ~ 125°C
