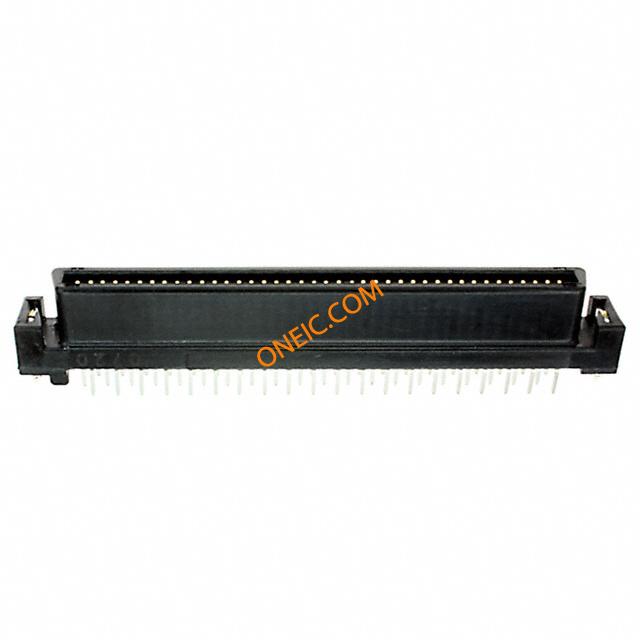

1734101-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 80 POS 2.54mm Solder ST Thru-Hole 80 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN RCPT 80POS .050" CHAMP GOLD Board to Board & Mezzanine Connectors VERT RECPT 80P Series I w/locks Conn SCSI RCP 80 POS 2.54mm Solder ST Thru-Hole 80 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 801.27 mm CenterlineStandard Profile Champ050 series,80pos,Au over PdNi |
| 分类 |
商业参数
| 其他名称 | A31782 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 864 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | With | 输入电阻 | 1000 |
| 钳位电压 | 750 | 额定交流电压 | 250 |
| 最大额定电流 | 1 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 10 mm [ .393 in ] | 镀层 | 哑光 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 端接方式 | Solder | 极化 | Keying Post |
| 致动器类型 | 带有 | 安装类型 | Through Hole |
| 连接器类型 | Series I | 接触镀层 | Tin |
| 尖端材料（笔尖） | Brass | 安装样式 | Thru Hole |
| 排数 | 2 | 壳体镀层 | Tin-Copper over Nickel |
| 连接器样式 | Outer Shroud Contacts | 插入件材料 | 磷青铜 |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | PPA | 总长度 | 1.27 [0.050] |
| 安装特性 | 板锁 | 包装数量 | 864 |
| 面板安装类型 | 通孔 | 端接样式 | 插座 |
| 触点数 | 80 | 位数 | 80 |
| 衬套/护套类型 | 不带 | 兼容外壳尺寸（如TM-700等） | 插头组件 |
| 触头长度-柱 | 2.54 mm [ .099822 in ] | 典型触点布局 | 网络 |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | Flash |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 系列 I | 产品特性 | Board Guide, Board Lock |
| 可堆叠 | 否 | 制造商全称 | AMP |
| 产品子类型 | Connector | 装配配置 | 无 |
| 适用产品/相关产品 | Board To Board Applications | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -55 – 85 °C [ -67 – 185 °F ] |
| 封装热阻 | .8 – 1.6 mm [ .031 – .063 in ] | ||
文档与媒体
