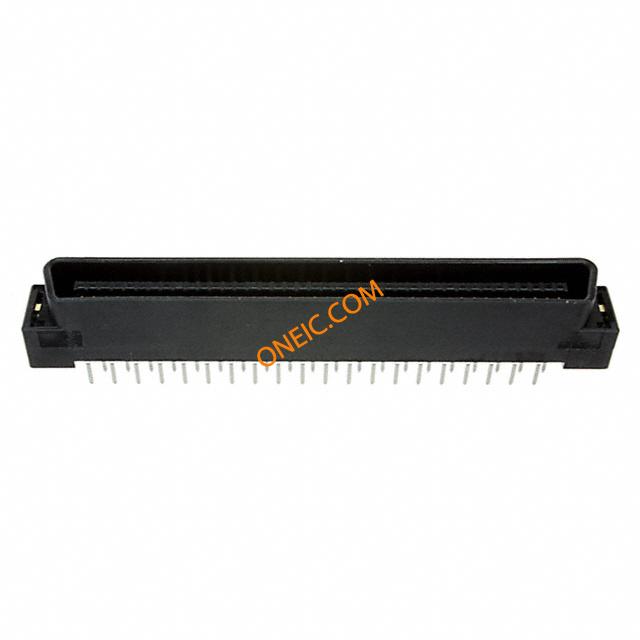

5-5175473-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 80 POS 2.54mm Solder ST Thru-Hole 80 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors .050CL,CHAMP,VERT PLUG,80 POSN Conn SCSI PL 80 POS 2.54mm Solder ST Thru-Hole 80 Terminal 1 Port Product Highlights:ConnectorPlug80 Positions1.27 mm CenterlineStandard Profile |
| 分类 |
商业参数
| 其他名称 | A33457 | 标准包装数量 | Trays |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Without | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 7 mm |
| 间距 | 2.54 mm | 高度 | 10 mm |
| 密封型 | Without | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | High Density (HD) |
| 接触镀层 | Gold (30) | 尖端材料（笔尖） | Brass |
| 安装样式 | Thru Hole | 排数 | 2 |
| 壳体镀层 | Tin over Nickel | 连接器样式 | Center Strip Contacts |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 1.27 [0.050] |
| 触点数 | 80 POS | 位数 | 80 |
| 端子柱长度 | 3.10 [0.122] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 适用产品/相关产品 | Board To Board Applications | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -55C to 85C |
| 结工作温度 | 85C | ||
