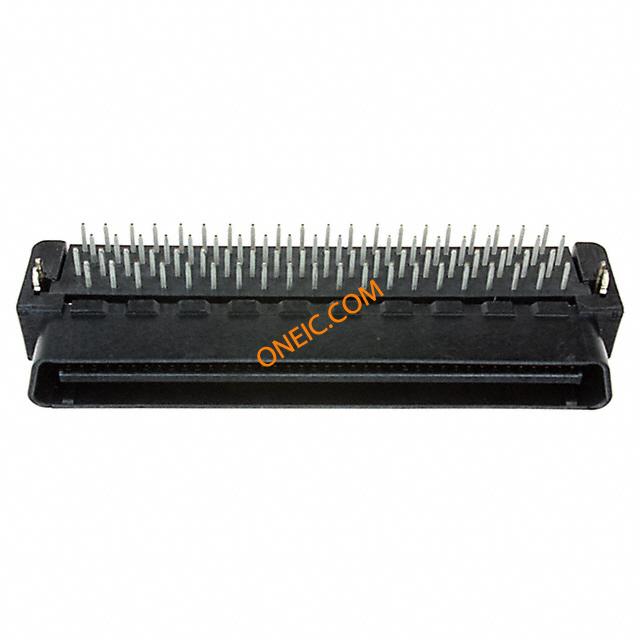

1734099-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 80 POS 2.54mm Solder RA Thru-Hole 80 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN PLUG 80POS .050" RT ANG I/O Connectors R.A. PLUG 80P Series I HI-TEMP Conn SCSI PL 80 POS 2.54mm Solder RA Thru-Hole 80 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 801.27 mm CenterlineStandard Profile Champ 050 series,plug assembly |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 21 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Without | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 17.46 mm |
| 间距 | 2.54 mm | 高度 | 7.5 mm |
| 镀层 | Tin-Copper over Nickel | 材料（通用） | Brass |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | Series I | 接触镀层 | Tin |
| 安装样式 | Thru Hole | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 外形（宽 x 高） | Standard |
| 堆叠方法 | 13.20 [0.520] | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 总长度 | 1.27 [0.050] |
| 端接样式 | Solder Tail | 触点数 | 80 |
| 位数 | 80 | 端子柱长度 | 3.10 [0.122] |
| 接触镀层厚度 | Flash | ||
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 产品特性 | Board Lock | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 适用产品/相关产品 | Board To Board Applications | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -55C to 105C |
| 结工作温度 | 105C | ||
