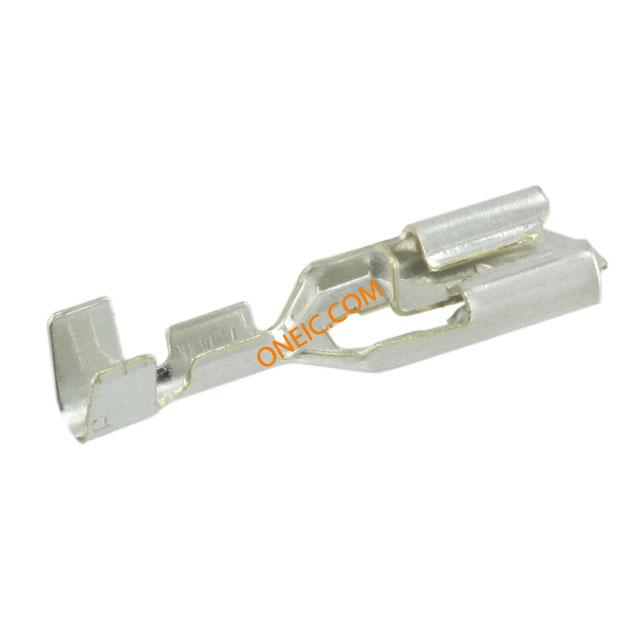

点击放大查看
170324-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 20-24AWG RCP 21.6mm 5.6mm Pre-Tin Strip Automotive Connectors .187 POS LOCK REC Positive Lock Connectors CONN RCPT STR 20-24 AWG .187 Contact SKT Crimp ST Cable Mount Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmLine = Mark IIReceptacle Style = StraightWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, CONTACT, CRIMP, RECEPTACLE, 24-20AWG POSITIVE LOCK 187 REC 24-20AWG 0.3 PTPBR |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A100471CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | 8,000 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 5.6 mm |
| 表面处理 | Pre-Tin | 长度 | 21.6 mm |
| 重量 | 0.005 | 材料（通用） | Brass |
| 按键颜色 | None | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 绝缘类型 | Not Insulated |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Straight |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 接触镀层 | Tin | 安装样式 | Wire |
| 壳体镀层 | Pre-Tin | 连接器样式 | Straight |
| 触头材料 | Brass | 总长度 | Mark II |
| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 接触件端接 | :Crimp |
| 绝缘直径 | 1.50-2.70 [.059-.106] | 线规或范围 - AWG | 24-20 |
| 线规或范围 - mm² | 0.20-0.60² [24-20] | ||
产品信息
| 备注 | Air-feed Applicator should be used. | 连接器性别 | Female |
| 系列 | 187 | 编码、键控 | No |
| 产品子类型 | Receptacle | 适用产品/相关产品 | :Positive Lock Connectors |
