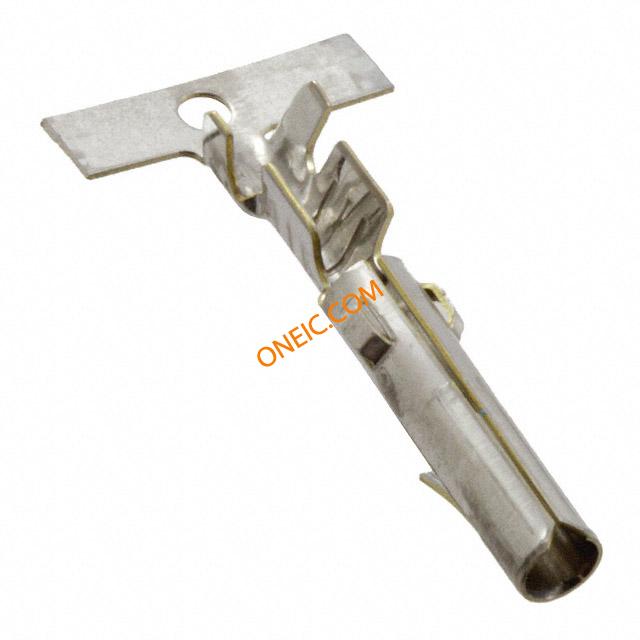

170147-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET MATE-N-LOK 18-24AWG Contact, Socket, 24-18AWG, Mate-n-Lok Pin & Socket Connectors MATE-N-LOK SOCKET 2 .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.10 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Socket,24-18AWG,Mate-n-Lok TE Connectivity Commercial MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡触点 MATE-N-LOK SOCKET 2 |
| 分类 |
商业参数
| 其他名称 | A107090CT | 标准包装规格 | 7,000 |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 35000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | 否 |
电气参数
| 供电电压 | 250 | 最大额定电流 | 13 |
机械参数
| 镀层 | 预镀锡 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 18-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 电缆直径 | 0.8mm² |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 包装数量 | 7000 | 端接排数 | 压接 |
| 端接样式 | 插座 | 适用端子尺寸 | No |
| 接触件端接 | Crimp | 绝缘直径 | 2.54 mm [ .1 in ] |
| 兼容外壳尺寸（如TM-700等） | 商用 MATE-N-LOK 护套 | 接触件表面处理 - 配合 | 预镀锡 |
| 法兰上方插针尺寸 | 2.1 mm [ .082 in ] | 线规或范围 - AWG | 18AWG |
产品信息
| 连接器性别 | SKT | 系列 | MATE-N-LOK |
| 产品子类型 | 端子 | 应用细节 | Power |
| 适用产品/相关产品 | WiretoBoard | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
