1-171196-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | MNL PANEL MOUNT PLUG 6P YELLOW Headers & Wire Housings PLUG 6P MATE-N-LOK YELLOW CONN PLUG 6POS MATE-N-LOK YELLOW |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 2,500 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Yellow | 间距 | 0.202" (5.13mm) |
| 包装方式 | Bulk | 排间距 | 0.202" (5.13mm) |
| 触头类型 | Female Socket | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 排数 | 3 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | ||
文档与媒体
相关型号

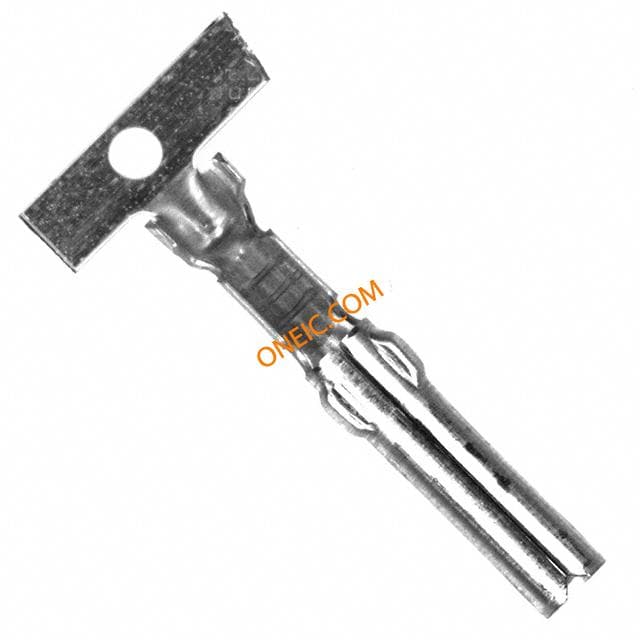

61314-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG TIN CRIMP Power to the Board S/F 24-18 AWG .0125 REEL Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG CMNL SOK 24-18 TPPHBZ
1-480276-0
te connectivity / amp
Conn Housing RCP 6 POS 5.13mm Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 6 POS MATE-N-LOK Female Compact Power Connector Socket,13A 250V ac Power to the Board PIN PANEL 6 CIRCUITS Conn Housing RCP 6 POS 5.13mm Crimp ST Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 65.13 x 6.10 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;CommercialMATE-N-LOK;6;Nylon;0.084;Receptacle(Cap) TE Connectivity 引脚外壳 插座 母, 13A 250 V 交流, -55 → +105 °C 06P CMNL CAP HSG P/M NATL

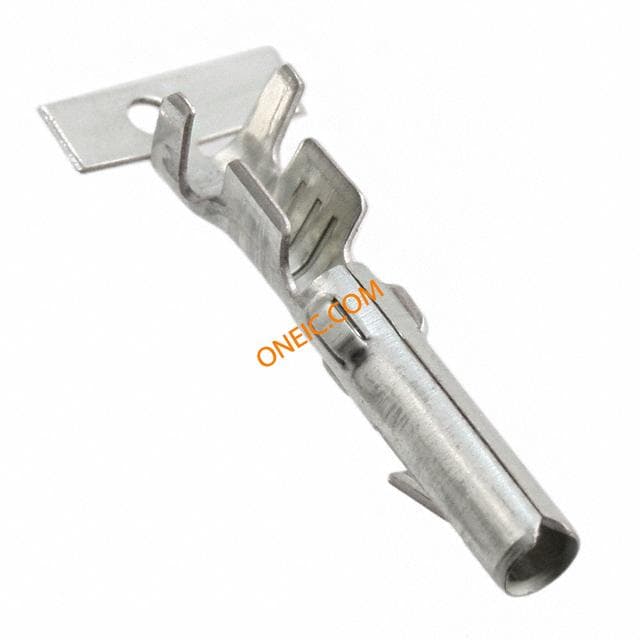

61117-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG M-N-L TIN Mate-n-Lok,Contact,socket,0.50-2.00mm² Power to the Board MINI UMNL PIN SN Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG MATE-N-LOKSTRIP,CMNLSOK20-14TPPHBZ TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 20-14 TPPHBZ
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61314-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR
61314-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONTACT SOCKET 24-18AWG M-N-L Pin & Socket Connectors CMNL SOK S/F 24-18 . .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61314-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-lok socket contact,0.20-0.80mm² Pin & Socket Connectors CMNL SOK S/F 24-18 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Mate-n-loksocketcontact,0.20-0.80mm² TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK S/F 24-18 .0125AUPHBZ
61117-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG GOLD CRIMP Power to the Board MNL SOK SF 20-14 .01 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 20-14 AUPHBZ
170147-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET MATE-N-LOK 18-24AWG Contact, Socket, 24-18AWG, Mate-n-Lok Pin & Socket Connectors MATE-N-LOK SOCKET 2 .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.10 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Socket,24-18AWG,Mate-n-Lok TE Connectivity Commercial MATE-N-LOK II 系列 母 压接接线端子, 压接, 镀锡触点 MATE-N-LOK SOCKET 2
61117-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG TIN MNL Contact,crimp,socket,20-14awg Power to the Board SPLIT PIN 24-18 REEL Reel of 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 20-14AWG CONTACT,SOCKET,MATE-N-LOK,2.13MM,20-14AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 20-14 TPBR

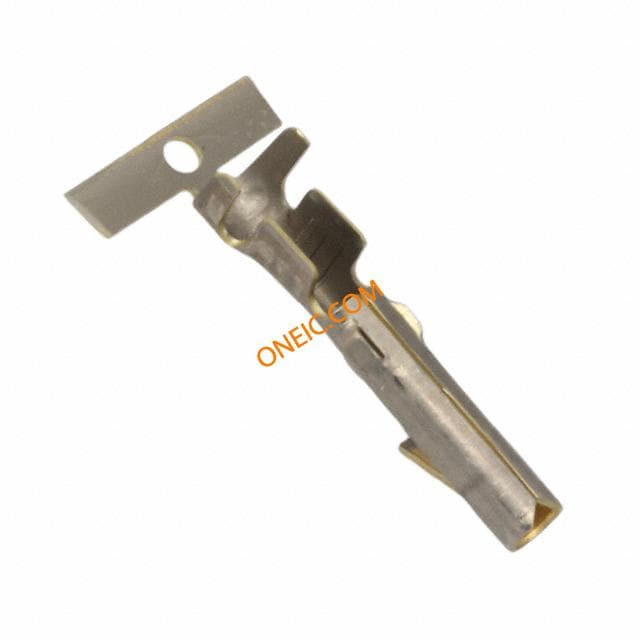

61117-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 20-14AWG M-N-L GOLD Power to the Board SOK 20-14 AUBR 5000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
61314-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L Power to the Board SOK 24-18 BR 28000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 BR
