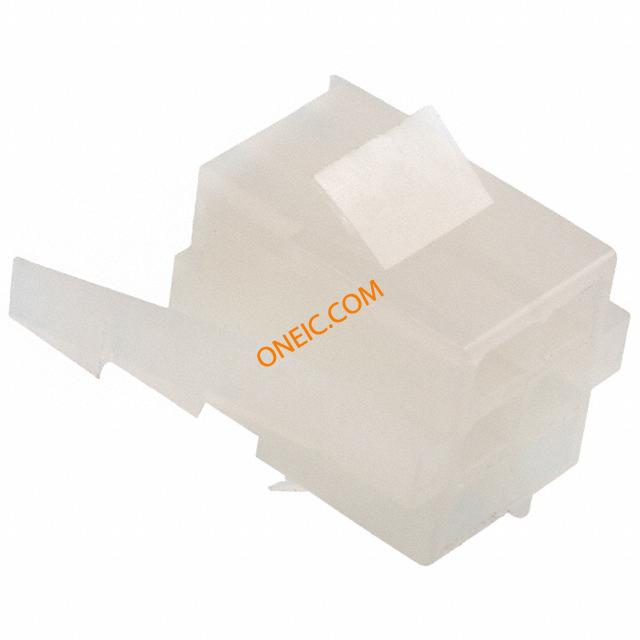

1-171196-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS Crimp ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 6POS MATE-N-LOK NATRL Mate-n-lok,housing,plug,6w skt contact Housing, Mate-n-Lok, plug, 6 way, pin Power to the Board 6P PLUG HSG MATRIX .200" Centerline, 250 V, 13 A max. Product Highlights:ConnectorNot PreloadedConnector Style = PlugAccepts Contact Gender = PinRow-to-Row Spacing = 6.09 mmSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Housing,Mate-n-Lok,plug,6way,pin TE Connectivity MATE-N-LOK 系列 2 行 6 路 直 公 PCB 壳体 6 POS MATE-N-LOK S |
| 分类 |
商业参数
| 标准包装规格 | 500 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 中心频率 | 带有 | 最大额定电流 | 13 A |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 21.6mm |
| 间距 | 0.202" (5.13mm) | 宽度 | 16.51 |
| 长度 | 19.4mm | 密封型 | Not Sealed |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 导线线规 | 14-30 AWG | 方向 | 直 |
| 排间距 | 0.202" (5.13mm) | 本体尺寸 | .64 – 1.65 mm [ .025 – .065 in ] |
| 触头类型 | Female Socket | 柱间距 | 5.13 x 6.10 [.202 x .240] |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Pre Tin | 紧固类型 | Latch Lock |
| 安装样式 | Press Fit | 排数 | 2 |
| 封装形式 | Plug | 高度（英寸） | 21.6 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 面板安装类型 | 带有 |
| 主要材料 | Connector | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 兼容外壳尺寸（如TM-700等） | 插针（盖帽）护套 | 典型触点布局 | Matrix |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 20-14 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MATE-N-LOK |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 电路数 | 6 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | ||
