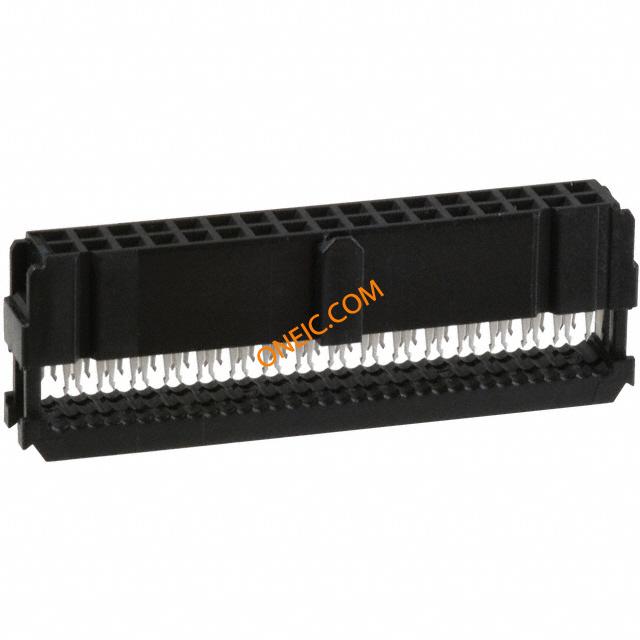

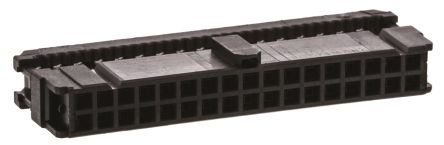

1658621-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings CNTR PLRZD RECPT 34P NOVO Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL 15 GOLD 34way polarised skt w/o strain relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 34WAY Connector,Receptacle;Novo;34;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:34; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 34P, 1658621-8, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 34路 2.54mm节距 直角 电缆安装 母 IDC 连接器 34 NOVO MIL/CTR 15DP,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 60 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Novo Series | 接触电阻 | :15mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1A |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
| 触点额定电流 | :1A | ||
机械参数
| 颜色 | Black | 深度 | 7.49 mm |
| 间距 | 2.54 mm | 高度 | 15.97 mm |
| 重量 | 0.1 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 柱间距 | :2.54mm |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 电缆端类型 | Without | 连接器类型 | NOVO |
| 接触镀层 | Gold Over Nickel | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 47.75 mm | 安装特性 | Without |
| 包装数量 | 1 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 端接样式 | Solder Pin |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 34 | 接触件端接 | :IDC / IDT |
| 位数 | 34 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - AWG | :26AWG |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 2x17 | ||
产品信息
| SPG | 1 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | AMP-LATCH NOVO |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Ribbon Cable | 单元数量 | 1 |
| 带调制解调器控制 | Yes | 应用细节 | Wire-to-Board |
环境参数
| 插拔次数 | :75 | 工作温度 | +105°C |
文档与媒体
相关型号

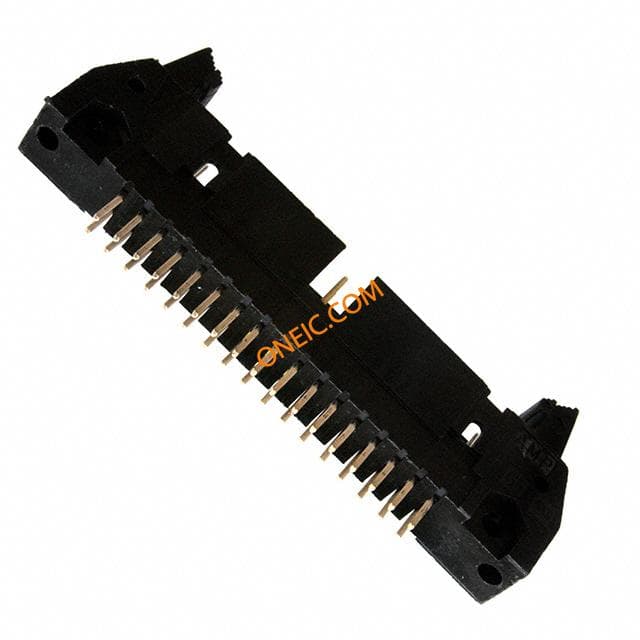

5111448-8
te connectivity / amp
Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 34POS UNIV I/O W/EARS Ribbon cable conn.male,34 way,2.54mm,blk Headers & Wire Housings 034 UNIV I/O 30DP SLOT Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 34PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board Ribboncableconn.male,34way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 34路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 034 UNIV I/O 30DP SLOT
3-1761605-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 34POS 30AU Headers & Wire Housings LOW PRO HDR 34P RA Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 34P RA BLUE
1-1761607-1
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 34POS AMP-LATCH IDC Header Right Angle 34P Headers & Wire Housings 100X100 HDR 2X017P R/A LOW PROFILE Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK AMP-LATCH 34 Position Through-Hole Dual Row Right Angle Pin Header IDC LOW PRO HDR 34P RA LG LAT
3-1761603-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS 30AU TE Connectivity 3-1761603 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 34P VERT BLUE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT BLUE
1-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 34POS Headers & Wire Housings 100X100 HDR 2X017P VERT LOW PROFILE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT LG LAT BLK
5102161-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 34P RA Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA
2-5499376-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS R/A .100 GOLD Headers & Wire Housings UNIV HDR 34P R/A BLU SHORT LATCH Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA SHT LAT BLUE
5103309-7
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS GOLD Headers & Wire Housings HDR VERT DOUBLE 34P low profile Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,AMP-LATCH,34POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 34P, 5103309-7, TE Connectivity A/L LOW PRO HDR 34P VERT BLACK

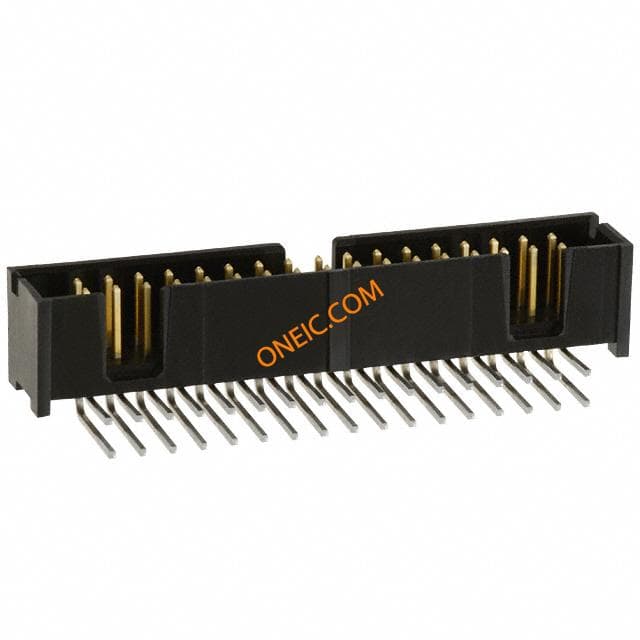

5103310-7
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 34POS GOLD Headers & Wire Housings 100X100 HDR 2X017P R/A LOW PROFILE Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;34;Gold A/L LOW PRO HDR 34P RA BLACK
2-5499374-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD A/L UNIV HDR 34P VERT SHT LAT BLUE
5499786-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 34 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 34waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA LG LAT
5102321-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD TE Connectivity 5102321 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X017P VRT EJE Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM 034UNIVHDRSP4S30DPSTDL1 TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT
5102162-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 34Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA
1-1761608-1
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 34POS Headers & Wire Housings 100X100 HDR 2X017P VERT LOW PROFILE Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM IDCHDRS501W&W/O,IDCLOWPROHDR34PVERTSHTLATBLK TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT SHT L
5499206-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,34POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 34P VERT LG LAT

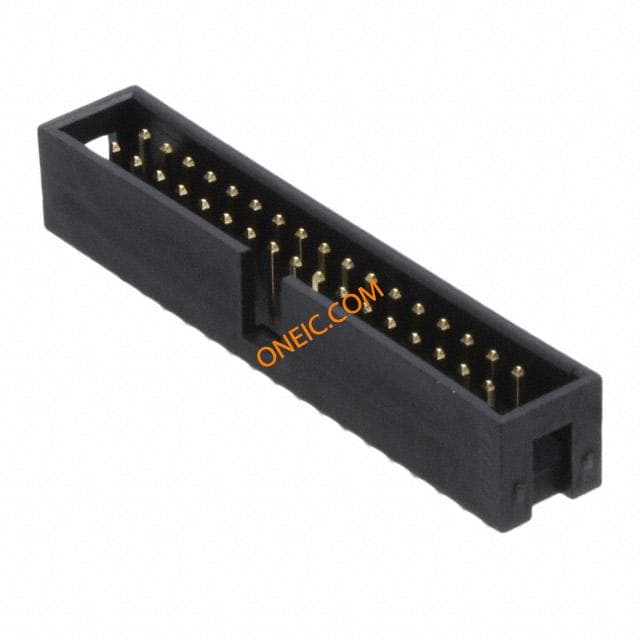

3-1634688-4
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS .100 VERT GOLD TE Connectivity 3-1634688 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR STRAIGHT 34P Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile34 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 34WAY 34wayIDClowprofileboxstraightheader TE Connectivity 3-1634688 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A
5499923-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X017P VRT EJE Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT

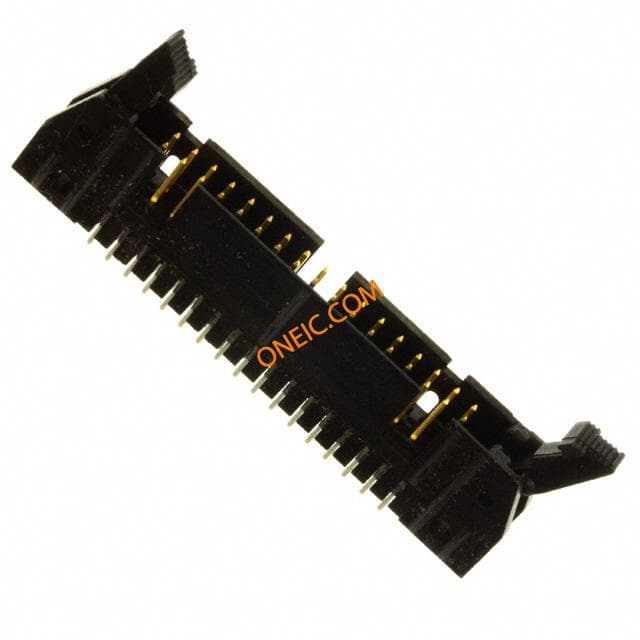

5499910-8
