点击放大查看

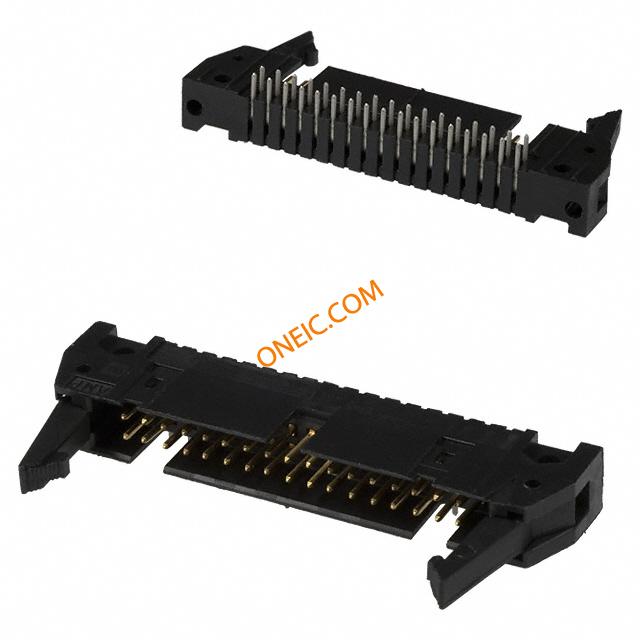

5499786-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 34 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 34waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 32 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 开关功能 | Ejection |
| 供电电压 | 250 | 输入电阻 | 5000 |
| 连接器阻抗 | 锁闩, 锁闩 | 最大额定电流 | 1A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 27.3 mm |
| 间距 | 2.54 mm | 高度 | 8.53 mm |
| 底座类型 | 不带 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 端部尺寸（如SMD/SMT、14mm等） | 3.81 mm [ .15 in ] | 引脚样式 | 直角 |
| 方向 | 直角 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.100" (2.54mm) |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch, Long/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外壳材料（壳体） | 4 面 | 驱动力 | 带有 |
| 电路板厚度 | 1.57 [0.062] | 插入件材料 | 黄铜 |
| 锁定特性 | Latch | 外形（宽 x 高） | Standard |
| 触头材料 | Brass, Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 62.48 mm | 安装特性 | 安装耳 |
| 包装数量 | 56 | 面板安装类型 | 通孔 |
| 主要材料 | PCB | 尺寸/外形 | 0.64 [.025] |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 板面高度 | 0.240" (6.10mm) | 配接方向 | With |
| 触点数 | 34 | 位数 | 34 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 15µin (0.38µm) |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 5499786 | 覆盖范围 | 覆盖 |
| 极性 | 带有 | 制造商全称 | 5499786Series |
| 产品子类型 | Headers | 其他规格 | With |
| 输出配置 | Through Hole, Right Angle | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
