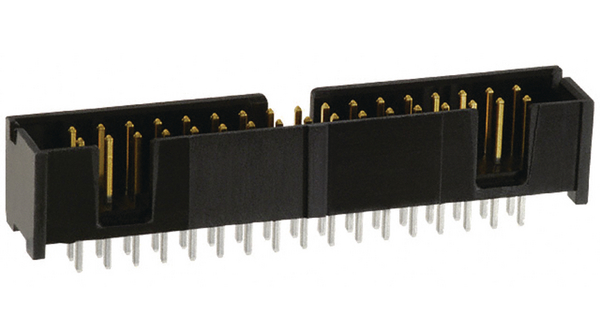

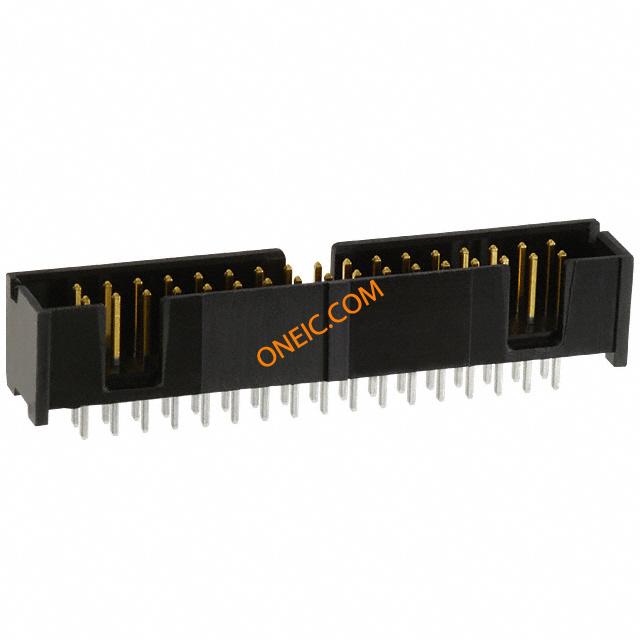

5103309-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS GOLD Headers & Wire Housings HDR VERT DOUBLE 34P low profile Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,AMP-LATCH,34POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 34P, 5103309-7, TE Connectivity A/L LOW PRO HDR 34P VERT BLACK |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 输出电流 | :1A | 最大额定电流 | 1 A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 深度 | 9.14 mm |
| 间距 | 2.54 mm | 宽度 | :2.000" |
| 高度 | 9.78 mm | 重量 | 0.00023 |
| 包装方式 | Tube | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate|Nylon |
| 总长度 | 50.8 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 34 | 接触件端接 | :Through Hole Vertical |
| 位数 | 34 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.05 mm | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
