1658540-3

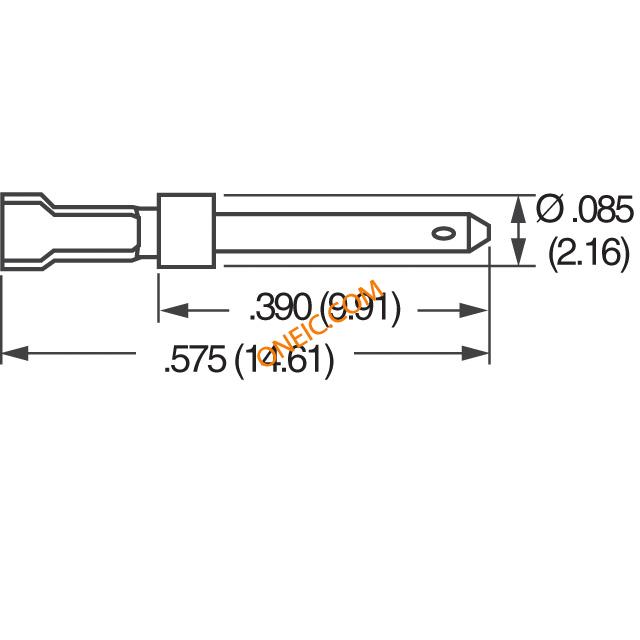

点击放大查看

1658540-3

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts PIN CONT 28-24 AU AMPLIMITE HD20 Crimp Snap-In CONN PIN 24-28AWG GOLD CRIMP 1658540-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = Crimp SnapWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONT DUPL PLT STRIP HD-20
分类
连接器解决方案接触件接触件（通用）

商业参数

其他名称A31916TR产品类别D-Sub Contacts
标准包装数量Tape & Reel

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant

电气参数

连接器阻抗压接

机械参数

镀层Gold材料（通用）Brass
包装方式Reel导线线规24-28 AWG
端接方式Crimp触点尺寸20
触头类型Pin引脚直径1.02
插针或插孔Pin端子尺寸20
连接器类型Connector Headers and PCB Receptacles接触镀层Gold
插入件材料黄铜触头材料Brass
包装数量Strip主要材料Brass
绝缘高度Yes端接样式Crimp Snap
第一触头极性Pin (Male)接触件端接Crimp Snap-In
绝缘直径0.76 - 1.02镀层厚度（通用）Flash
兼容外壳尺寸（如TM-700等）AMPLIMITE HDP-20接触镀层厚度30
触点材料 - 配合Gold Flash线规或范围 - AWG0.08 - 0.20 [28-24]

产品信息

类型Stamped等级Standard
连接器性别SKT系列HDP-20 (Crimp Snap)
制造商全称AMP产品子类型Contact
适用/相关制造商AMPLIMITE HDP-20
