点击放大查看

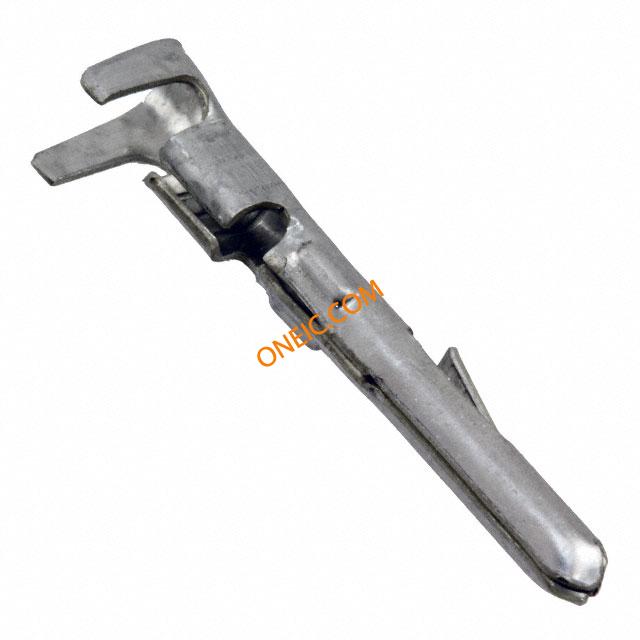

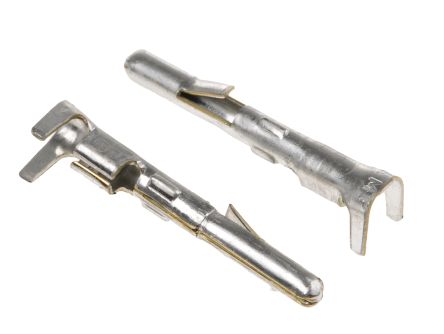

163307-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Power to the Board PIN 1.00-2.50 CONN PIN 13-17AWG TIN Pin contact 16-14 awg 163307-2 Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 17-13 AWG, CRIMP Contact; male; 1÷2.5mm2; Commercial MATE-N-LOK; tinned; crimped TE Connectivity Commercial MATE-N-LOK 系列 压接接线端子, 镀锡触点 MATENLOK PIN |
| 分类 |
商业参数
| 其他名称 | A107626 | 产品类别 | Power to the Board |
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 工作电压 | :250V | 最大额定电流 | :15A |
机械参数
| 重量 | 0.3 | 包装方式 | Bulk |
| 导线线规 | 13-17 AWG | 柱间距 | 5.08mm |
| 安装类型 | crimped | 插针或插孔 | Pin |
| 连接器类型 | male | 接触镀层 | Tin |
| 封装形式 | in bulk | 触头材料 | Brass |
| 包装数量 | :100 | 连接器 - 电缆 | contact |
| 第一触头极性 | :Pin | 接触件端接 | Crimp |
| 线规或范围 - AWG | :17AWG | 线规或范围 - mm² | :2.5mm² |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1000 | 连接器性别 | :Plug |
| 系列 | :Mate-N-Lok | 适配器系列 | Commercial MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors |
