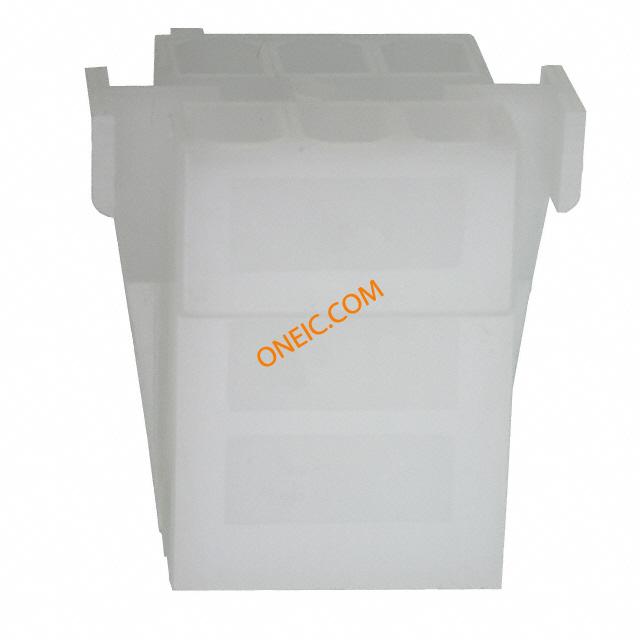

1-480270-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 6 POS MATE-N-LOK Power to the Board SOCKET FREE 6 CRKTS Conn Housing PL 6 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 64.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY Connector;CommercialMATE-N-LOK;Plug;6;Nylon;13A(Max.);250VAC;Natural 06P CMNL PLUG HSG M/M NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 工作电压 | :250V | 接触电阻 | :4mohm |
| 介电强度 | :1500V | 最大额定电流 | 13 A |
| 绝缘电阻 | :500Mohm | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | Commercial MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 21.59 mm |
| 间距 | 4.95 mm | 高度 | 15.49 mm |
| 重量 | 0.004 | 材料（通用） | :Nylon |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 排间距 | 0.360" (9.14mm) | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | Plug | 壳体材料 | Nylon |
| 总长度 | 18.42 mm | 包装数量 | One Piece Housing |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 6 |
| 接触件端接 | Crimp | 位数 | 6 |
| 中心触点材料 | 4.95 x 9.14 [.195 x .360] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 2.13 [0.084] | 线规或范围 - AWG | 30-14 |
产品信息
| 备注 | Housing accepts double wire applications where individual insulation diameters | 类型 | Housing |
| 连接器性别 | PL | 系列 | :Mate-N-Lok |
| 产品子类型 | Housing | 电路数 | 6 |
| 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :105°C |
文档与媒体
相关型号

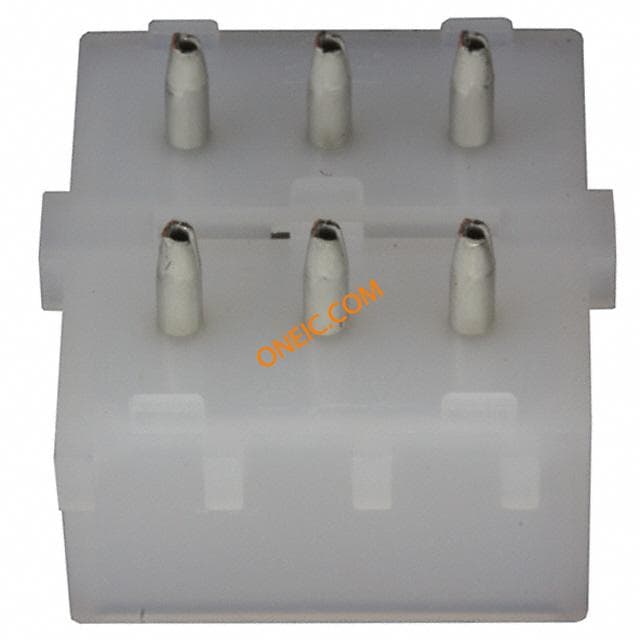

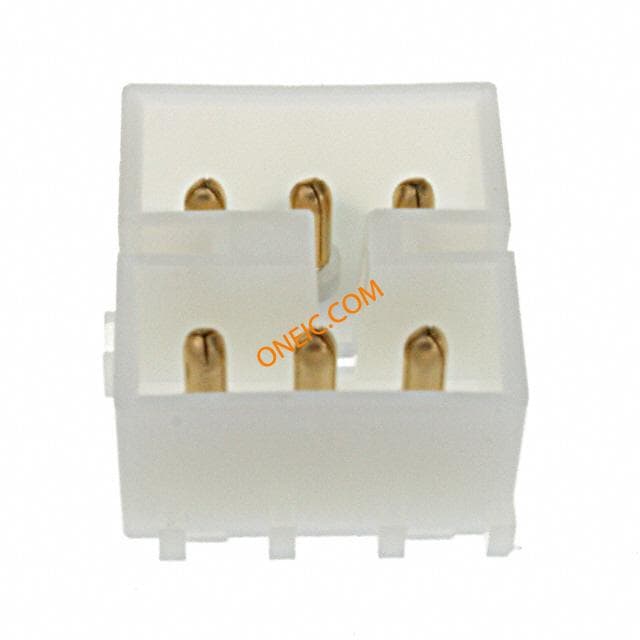

2-380999-0
te connectivity / amp
Conn Power HDR 6 POS 4.95mm Solder ST Thru-Hole 6 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 6 POS GOLD PCB Power to the Board 6P HDR ASSY NATL Conn Power HDR 6 POS 4.95mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 64.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 06P CMNL HDR ASSY NATL
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR
1-480340-0
te connectivity / amp
Conn Housing RCP 6 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 6 POS MATE-N-LOK Power to the Board PIN FREE 6 CIRCUITS Conn Housing RCP 6 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 64.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 6WAY Connector;CommercialMATE-N-LOK;Receptacle(Cap);6;Nylon;13A(Max.);AMP 06P CMNL CAP HSG F/H NATL

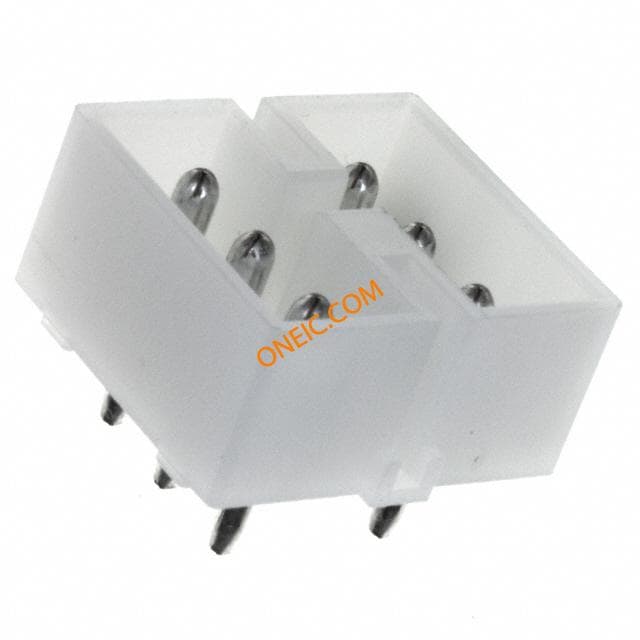

350425-1
