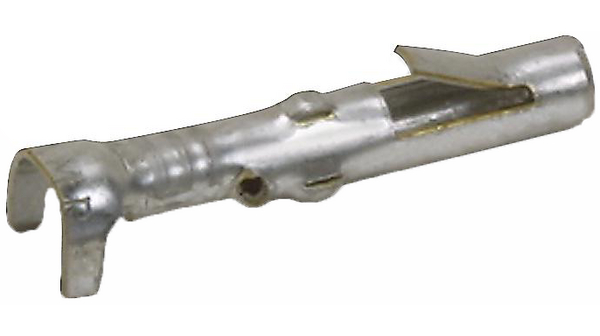

163306-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Socket contact 16/14 awg Power to the Board SOCKET 1.00-2.50 Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 13AWG TO 17AWG, CRIMP Socketcontact16/14awg Contact; female; 1÷2.5mm2; Commercial MATE-N-LOK; tinned; crimped Crimp socket 13 A Female 13...17 AWG, 163306-2, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 MATENLOK SOCK |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.034 | 导线线规 | :17AWG |
| 端接方式 | Crimp | 触点尺寸 | :13 |
| 触头类型 | Signal | 柱间距 | 5.08mm |
| 安装类型 | crimped | 电缆直径 | 2.5...3.8mm |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin |
| 安装样式 | for cable | 触头材料 | Brass |
| 包装数量 | :100 | 连接器 - 电缆 | contact |
| 第一触头极性 | :Socket | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :13AWG | 线规或范围 - mm² | :2.5mm² |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :3.8mm |
产品信息
| SPG | 1000 | 连接器性别 | SKT |
| 系列 | :Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 适配器系列 | Commercial MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | :Commercial MATE-N-LOK Connectors |
