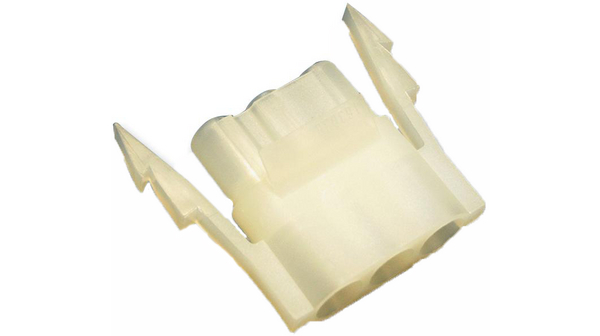

1-163038-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | ピン & ソケットコネクタ 03P SOCK HSG Male Compact Power Connector Plug,13A 250V ac Pin & Socket Connectors 03P SOCK HSG Conn Housing PL 3 POS 7.12mm Crimp ST Loose Piece Conn Housing PL 3 POS 7.12mm Crimp ST Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 3WAY 03P M-N-L.SOCK.HSG. 3wSockethousingPanelmount7.1pitch Socket housing Pitch7.12 mm Poles 1 x 3 MATE-N-LOK Commercial, 1-163038-0, TE Connectivity TE Connectivity 插座外壳 插头 公, 13A 250 V 交流 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 500 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 额定电压 | 250 V ac | 最大额定电流 | 13A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | Natural | 深度 | 29.8 mm |
| 间距 | 7.12 mm | 宽度 | :22.6mm |
| 高度 | 19.6 mm | 长度 | :24.7mm |
| 重量 | 0.001 | 材料（通用） | :Polyamide |
| 包装方式 | Bulk | 导线线规 | 14-30 |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Plug |
| 排数 | 1 | 封装形式 | :Plug, Free Hanging with Positive Lock |
| 壳体材料 | PA | 总长度 | 34.3 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Clear | 触点数 | 3 |
| 接触件端接 | Crimp | 位数 | :3 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Male | 系列 | :Commercial MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Plug Housings |
