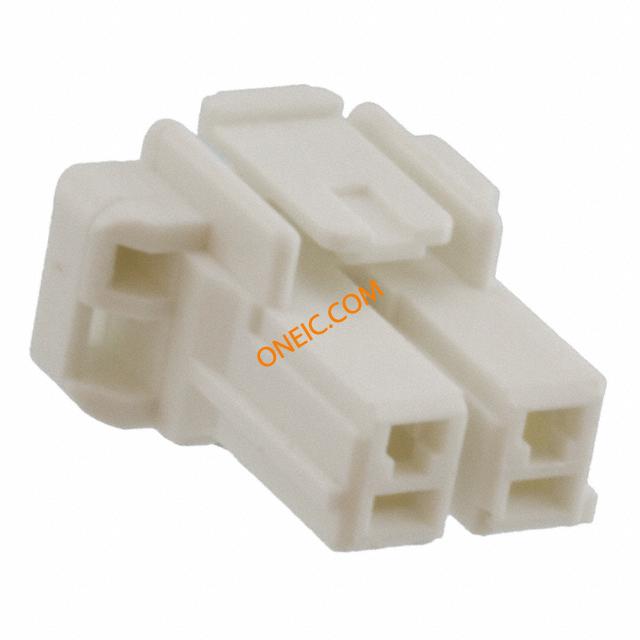

点击放大查看
1376388-1
| 制造商 | |
| 描述 | Conn Housing PL 2 POS 5mm Crimp ST Cable Mount Loose Piece 5mm Power Key Connectors CONN HOUSING PLUG 2POS 5MM Housing, Rec, 2 way, 5mm, Power key, A Heavy Duty Power Connectors 5MM PWER KEY 2P PLUG HSG NUT Conn Housing PL 2 POS 5mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingPlugNumber of Positions = 2Number of Rows = 1Key Type = ASearch Keywords:power circuit, home appliance, PWRSIGALLP Housing,Rec,2way,5mm,Powerkey,A TE Connectivity Power Key 系列 5mm 节距 2 路 直 公 电缆安装 压接连接器外壳 5MM POWER KEY 2P PLUG HSG NUT |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Not relevant for lead free process |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 300 | 最大额定电流 | 10/Contact A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Natural | 深度 | 9.6mm |
| 间距 | 5 mm | 宽度 | 16.2mm |
| 高度 | 9.6 mm | 长度 | 15mm |
| 密封型 | Not Sealed | 材料（通用） | Nylon GF |
| 包装方式 | Bulk | 导线线规 | 16-24 AWG |
| 方向 | 直 | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 安装样式 | CableMount |
| 排数 | 1 | 封装形式 | Plug |
| 插入件材料 | 铜合金 | 壳体材料 | Nylon |
| 总长度 | 5.00 [0.197] | 包装数量 | Loose Piece |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | 插座 | 触点数 | 2 |
| 接触件端接 | Crimp | 绝缘直径 | 1.7 – 3.1 mm [ .067 – .122 in ] |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 母端护套 |
| 安装孔直径 | 带有 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Power Key |
| 钥匙类型 | A | 产品子类型 | Housing |
| 适用产品/相关产品 | PCB Connector | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -30C to 105C |
