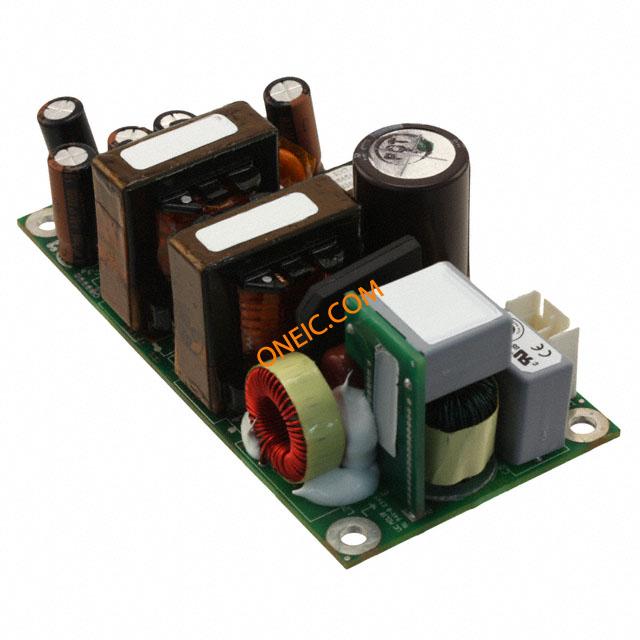

CLP0212FPXX5Z01A
| 制造商 | |
| 描述 | AC/DC Power Supply Single-OUT 12V 16.7A 100W POWER SUPPLY 12V 200W OPEN FRAME Linear and Switching Power Supplies 200W 12Vout 16.7A 5V@0.25A Stand-By CLP0212FPXX5Z01A from GE Energy, 200 Watt, Single Output |
| 分类 |
商业参数
| 产品 | Switching Supplies | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | CB, CE, cUL, TUV, UL |
电气参数
| 输出端 | 12.0V @ 16.70A;5.0V @ 0.25A | 频率 | 47 to 63 Hz |
| 效率 | 90(Min) % | 输出类型 | AC/DC单路Single开关电源 |
| 最大功率 | 100 W | 输出功率 | 200 W |
| 功率（瓦） | 200W | 电压范围 | 90-264 |
| 额定输出功率 | 200 | 额定电压 | 90 to 264 V |
| 输出电流 | 16.7 A | 效率类型 | 91 |
| 输出数量 | 1 | 供电类型 | Switching (Open Frame) |
| 标称电压 | 220 | 最大功率（瓦特） | 200W |
| 最大额定电流 | 3 A | 最小输入电压 | 12V |
| 输出电流/通道 | 16.7 A | ||
机械参数
| 尺寸 | 2*4*1.4 | 重量 | 12.345887 oz |
| 包装方式 | Tray | 本体尺寸 | 4.00 x 2.00 x 1.24" |
| 安装类型 | Chassis Mount | 安装样式 | Chassis |
| 面板安装类型 | Open Frame | 尺寸/外形 | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) |
产品信息
| 类型 | Switching | 系列 | GE EneregyCLP0212 |
| 应用 | Commercial | 库存状态 | Please Call |
环境参数
| 冷却类型 | 100 Wattsconvection cooled | 工作温度 | 0 to 50 °C |
