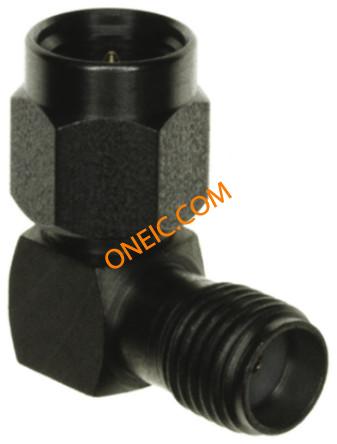

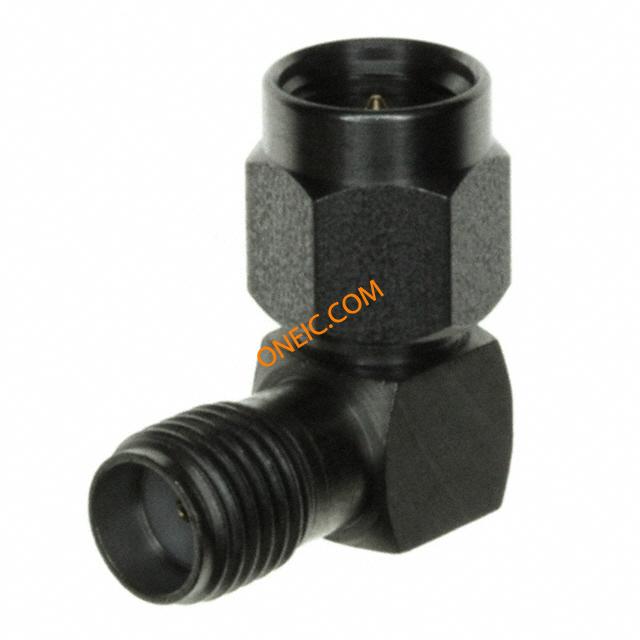

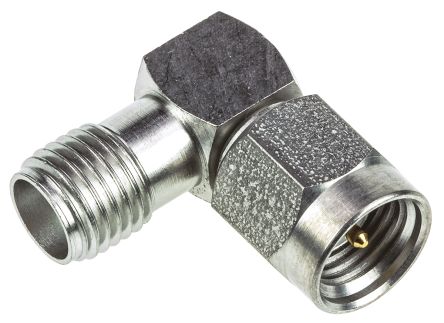

1055065-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SMA Adapter PL/RCP 0Hz to 12.4GHz RA Gold Over Copper SMA/QMA RF Connectors CONN ADAPTER R/A PLUG-JACK GOLD SMA right angle adaptor, plug to Jack Conn SMA Adapter PL/RCP 0Hz to 12.4GHz RA Gold Over Copper Product Highlights:AdapterConnector Type = SMAAdapter Type = Plug-JackBody Style = Right AngleWithout Panel AttachmentSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 ADAPTER, R/A, PLUG-JACK, GOLD SMAADAPTER;PLUG-JACK;RIGHTANGLE SMA Plug to SMA Jack Right Angle RF Connector Adapter TE Connectivity 直角 50Ω 射频适配器 , 0 → 12.4GHz, SMA 插头 到 SMA 插座 2088 0000 02 |
| 分类 |
商业参数
| 其他名称 | A99390 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366990 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 335V | 转换速率 | Same Series |
| 最大频率 | 12.4GHz | ||
机械参数
| 长度 | 12.70 [0.500] | 重量 | 0.005 |
| 包装方式 | Bulk | 本体表面处理 | Passivated |
| 基体材料 | Stainless Steel | 边缘接触 | With |
| 安装类型 | Right Angle | 行程角度 | RightAngle |
| 连接器类型 | SMA | 接触镀层 | Gold Over Copper |
| 外壳涂层 | Passivated | 锁定特性 | Without |
| 触头材料 | Beryllium Copper | 壳体材料 | StainlessSteel |
| 面板安装类型 | Without | 主要材料 | Adapter |
| 尺寸/外形 | 0.5in.L | 配接方向 | Threaded |
| 介电材料 | TFE Fluorocarbon | 第二连接器性别 | :Socket |
| 中心触点镀层工艺 | Gold over Copper | 中心触点材料 | With |
| 供应商器件封装 | Right Angle | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | :Plug | ||
产品信息
| 类型 | SMA Adapter | 样式 | Right Angle |
| 连接器性别 | PL/RCP | 适配器类型 | Plug to Jack |
| 制造商全称 | AMP | 产品子类型 | Adapter |
| 中心极性 | Female to Male | 适配器系列 | OSM to OSM |
| 连接方式 | Mechanical | 射频系列/标准 | 105506 |
| 应用细节 | Commercial | 转换端（适配器端） | SMA Jack, Female Socket |
| 转换自（适配器端） | SMA Plug, Male Pin | ||
环境参数
| 插拔次数 | 500 | ||
文档与媒体
相关型号
1053378-1
te connectivity / amp
Conn SMA RCP 0Hz to 12.4GHz 50Ohm Solder RA Thru-Hole Gold SMA/QMA RF Connectors CONN SMA JACK R/A 50 OHM PCB SMA r/a PCB mount Jack Conn SMA RCP 0Hz to 12.4GHz 50Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorJackConnector Type = SMATerminate To Printed Circuit BoardBody Style = Right AngleSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 JACK, SMA, R/A, PCB, GOLD Connector,Jack;SMA;PrintedCircuitBoard;RightAngle;StainlessSteel;PTFE TE Connectivity 直角 50Ω 通孔安装 SMA 连接器, 插座, 焊接端接 2064 0000 00

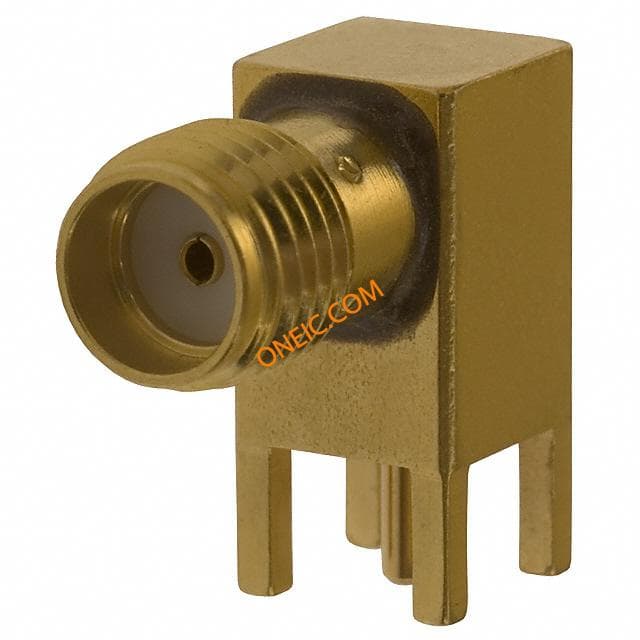

221790-1
