点击放大查看
1050525-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Copper SMA/QMA RF Connectors CONN SMA PLUG STR 50 OHM SOLDER SMA straight cable plug solder Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Copper Product Highlights:ConnectorPlugConnector Type = SMATerminate To Coaxial CableCoaxial Cable Termination Type = SolderSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 PLUG, SMA, RG-402, STR, SOLDER Connector,Plug;SMA;Solder;Straight;StainlessSteel;0.040in.;50Ohms TE Connectivity 50Ω 电缆安装 SMA 连接器, 插头, 焊接端接, 用于RG402电缆 2001 5003 02,SMA CABLE PLUG |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Connector RF |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85366990 | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 18GHz |
机械参数
| 尺寸 | Standard | 长度 | 0.040in. |
| 重量 | 0.005 | 包装方式 | Bulk |
| 电缆类型 | :RG402/U | 本体表面处理 | Gold |
| 电缆组 | RG-402 (.141" Semi Rigid) | 端接方式 | Solder |
| 基体材料 | Stainless Steel | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold Over Copper | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 安装样式 | CableMount |
| 连接器样式 | SMA | 触头材料 | Beryllium Copper |
| 壳体材料 | StainlessSteel | 主要材料 | SMA |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | 供应商器件封装 | :Straight Plug |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 极性 | Normal | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 1050525 | 应用细节 | Commercial |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号

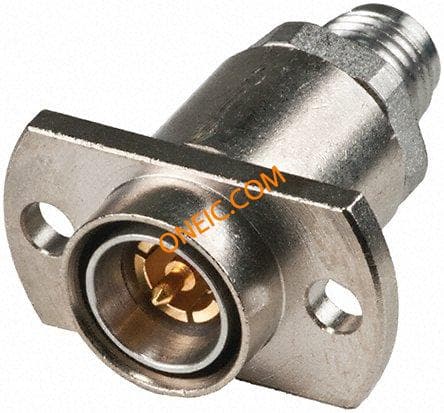

448091-2
