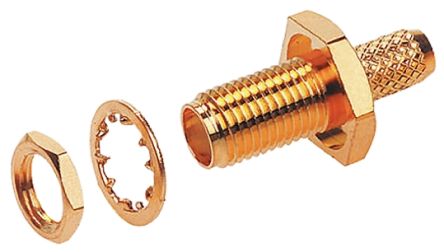

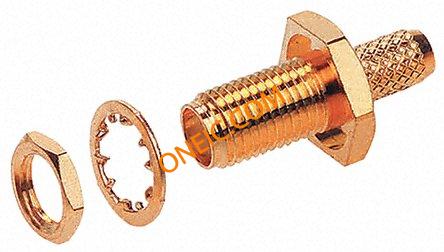

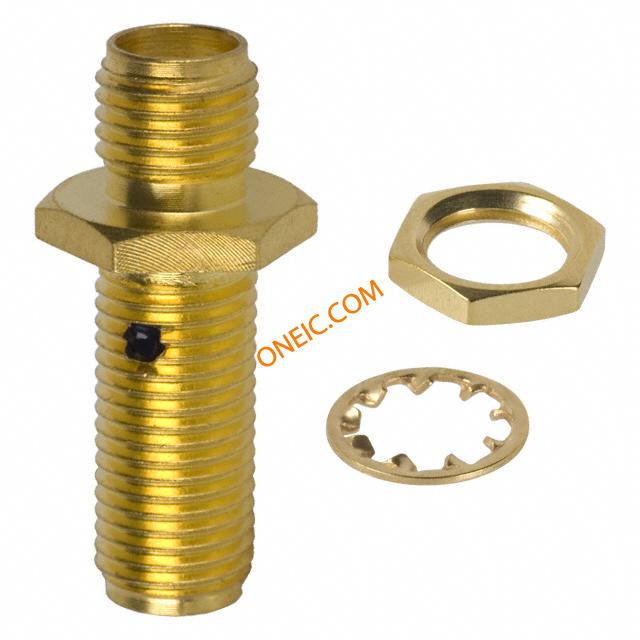

1054868-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SMA Adapter RCP/RCP 0Hz to 18GHz 50Ohm ST Panel Mount Gold Over Copper SMA/QMA RF Connectors CONN ADAPTR SMA JACK-JACK BULKHD SMA Adaptor Jack to Jack Conn SMA Adapter RCP/RCP 0Hz to 18GHz 50Ohm ST Panel Mount Gold Over Copper Product Highlights:AdapterConnector Type = SMAAdapter Type = Jack-JackBody Style = StraightWith Panel AttachmentSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 ADAPTR SMA JACK - JACK, BULKHEAD SMAFTCABLEJACK CONN ADAPT JACK-JACK SMA 50 OHM TE Connectivity 直 50Ω 射频适配器 , 0 → 18GHz, SMA 插座 到 SMA 插座 2084 0000 00 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliants |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 335V | 转换速率 | Same Series |
| 最大频率 | 18GHz | ||
机械参数
| 长度 | 22.2mm | 重量 | 0.005 |
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 基体材料 | Stainless Steel | 边缘接触 | With |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | SMA | 接触镀层 | Gold Over Copper |
| 外壳涂层 | Gold | 安装样式 | Bulkhead |
| 锁定特性 | Without | 触头材料 | Beryllium Copper |
| 壳体材料 | StainlessSteel | 总长度 | 22.20 [0.874] |
| 面板安装类型 | Bulkhead | 主要材料 | Adapter |
| 尺寸/外形 | 0.874in.L | 配接方向 | Threaded |
| 介电材料 | TFE Fluorocarbon | 第二连接器性别 | :Socket |
| 中心触点镀层工艺 | Gold over Copper | 中心触点材料 | With |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Panel |
| 第一连接器安装特征 | :Socket | ||
产品信息
| 类型 | SMA Adapter | 样式 | Straight |
| 连接器性别 | RCP/RCP | 适配器类型 | Jack to Jack |
| 制造商全称 | AMP | 产品子类型 | Adapter |
| 中心极性 | Female to Female | 适配器系列 | OSM to OSM |
| 连接方式 | Epoxy | 射频系列/标准 | 1054868 |
| 应用细节 | Commercial | 转换端（适配器端） | SMA Jack, Female Socket |
| 转换自（适配器端） | SMA Jack, Female Socket | ||
