1-794542-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 16 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PLUG 16POS .165 Pin & Socket Connectors 16 DUAC PLUG HSG 94V 16 DUAC PLUG HSG 94V-2 FR/HANG 16 DUAC PLUG HSG 94V-2 FR/HANG Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power |
| 分类 |
商业参数
| 标准包装规格 | 200 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | E28476 |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 宽度 | 34.8 mm [ 1.37 in ] | 高度 | 11.7 mm [ .46 in ] |
| 长度 | 23.9 mm [ .94 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 导线线规 | 18-26 AWG |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Phosphor Bronze |
| 壳体材料 | 尼龙 | 包装数量 | 200 |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok |
| 产品子类型 | Receptacle Housings | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号

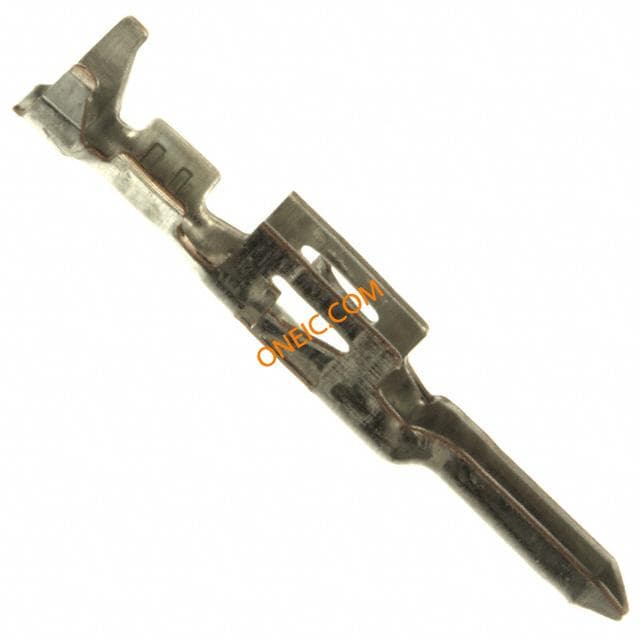

794578-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26AWG TIN CRIMP TERM Pin & Socket Connectors AMP DUAC PIN AMP DUAC PIN 26-22 AWG TIN
1-794657-6
te connectivity / amp
Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RCPT 16POS .165 NATURAL Pin & Socket Connectors 16P RCPT HSG 94V-0 Conn Housing RCP 16 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions16 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 16P RCPT HSG 94V-0
794579-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals DUAC PIN 26-22 TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26 AWG TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.12-0.40² [26-22] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Amp- Dual Action 26-22 AWG Male Pin Contact AMP DUAC PIN 26-22 AWG TIN LP
794577-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 18-22AWG TIN CRIMP TERM Headers & Wire Housings AMP DUAC PIN 22-18 A Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.30-0.90² [22-18] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power AMP DUAC PIN 22-18 AWG TIN LP

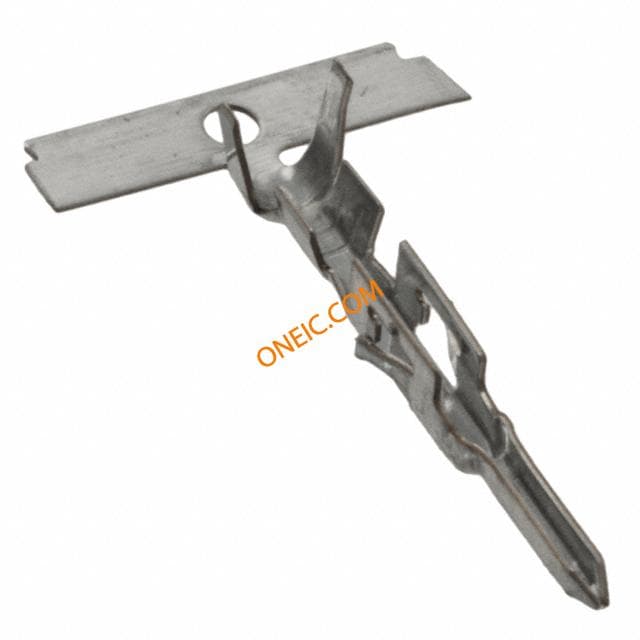

794576-1
