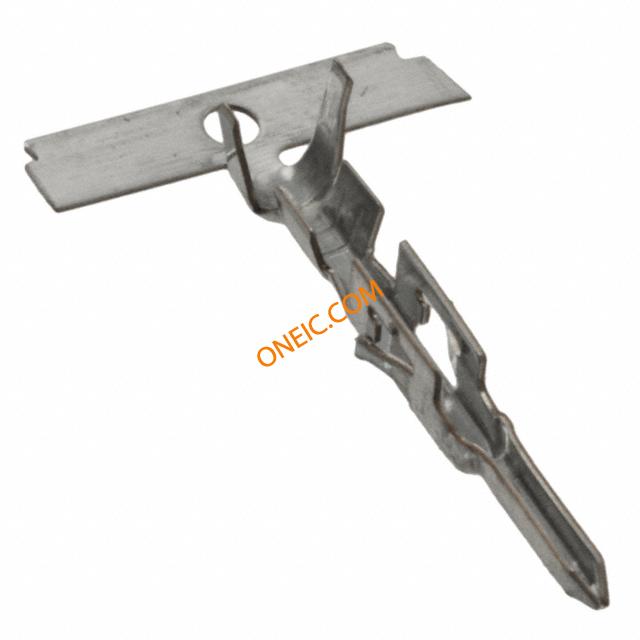

794576-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Reel 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 18-22AWG TIN CRIMP TERM Pin & Socket Connectors DUAC PIN 22-18 Contact PIN Crimp ST Cable Mount Reel Product Highlights:ContactAMP-DUACPinWire Range = 0.30-0.90² [22-18] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Amp- Dual Action 22-18 AWG Male Pin Contact AMP DUAC PIN 22-18 AWG TIN |
| 分类 |
商业参数
| 其他名称 | A100830CT | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 250, 600 |
| 最大额定电流 | 9 A | 连接器类型 - 电压输入 | AMP-DUAC |
机械参数
| 间距 | 3 mm | 镀层 | 预镀锡 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Through Hole |
| 排数 | 2 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | Reel |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 1.50-2.40 [.059-.094] | 位数 | 0 |
| 接触件表面处理 - 配合 | 预镀锡 | 线规或范围 - AWG | 22-18 |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | Amp Duac | 产品子类型 | Contact |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
