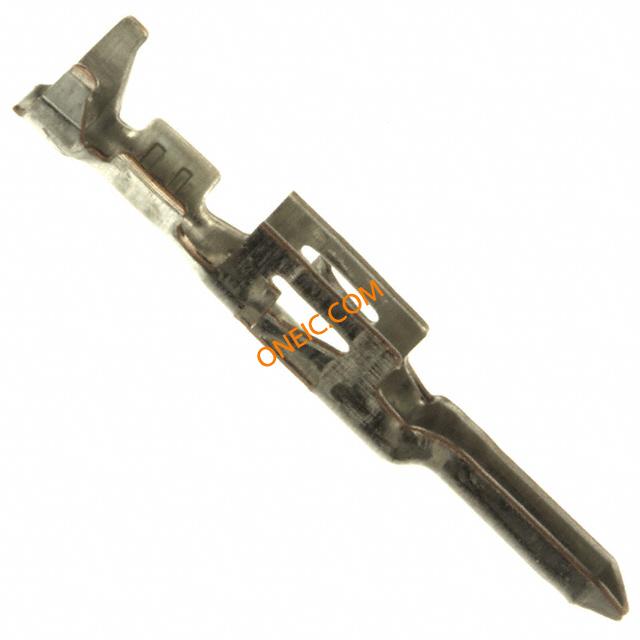

794579-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Terminals DUAC PIN 26-22 TIN 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PIN 22-26 AWG TIN Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactAMP-DUACPinWire Range = 0.12-0.40² [26-22] mm [AWG]Pre-Tin Contact Mating Area PlatingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Amp- Dual Action 26-22 AWG Male Pin Contact AMP DUAC PIN 26-22 AWG TIN LP |
| 分类 |
商业参数
| 产品 | Pin Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 600 | 最大额定电流 | 9 |
| 连接器类型 - 电压输入 | AMP-DUAC | ||
机械参数
| 镀层 | 预镀锡 | 材料（通用） | Phosphor Bronze |
| 包装方式 | Bulk | 绝缘类型 | Not Insulated |
| 导线线规 | 26-22 | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 1.20-1.75 [.047-.069] | 位数 | 0 |
| 接触件表面处理 - 配合 | 预镀锡 | 线规或范围 - mm² | 0.12-0.40² [26-22] |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品子类型 | Contact | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
