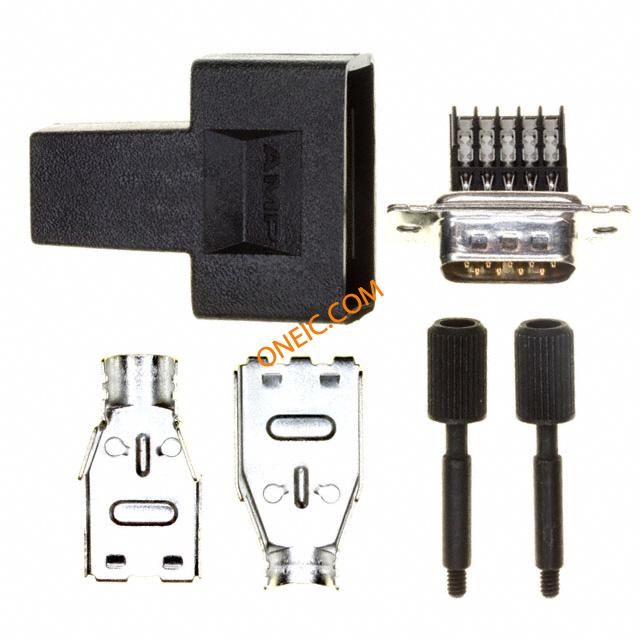

1-747944-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors DSUB E09P IDC 26-22AWG KIT Standard Cable Connectors CONN D-SUB PLUG 9POS 22-26AWG AU Conn D-Subminiature PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Bulk Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,PLUG,9P,HDE,SHLD ENCLSRE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250V | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | Varies by Wire Gauge | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 37.26 mm |
| 间距 | 2.77 mm [ .109 in ] | 高度 | 16 mm |
| 外形尺寸(长x宽) | 1 | 包装方式 | Bulk |
| 屏蔽 | 是 | 电缆类型 | 分离式导线, 环状护套电缆 |
| 外壳尺寸 | 1 | 导线线规 | .15 – .4 mm² [ 26 – 22 AWG ] |
| 端接方式 | Crimp | 螺纹尺寸 | 4-40 |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 端子尺寸 | 20 |
| 线径 | 4.83 – 9.53 mm [ .19 – .375 in ] | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Cable Side; Male Jackscrew (4-40) |
| 安装样式 | Wire | 排数 | 2 |
| 封装形式 | 带有 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | 磷青铜 |
| 屏蔽材料 | 钢 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon/Polyester | 总长度 | 34.41 mm |
| 安装特性 | 无 | 包装数量 | 1 |
| 接地凹痕 | With | 绝缘高度 | Yes |
| 端接样式 | IDC | 外径 | 9.53 mm [ .375 in ] |
| 触点数 | 9 | 绝缘直径 | 1.52 mm [ .06 in ] |
| 位数 | 9 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 线规或范围 - AWG | 26 – 22 | 触点材料 - 镀层 | 热塑性 |
| 护套（绝缘）材料 | Zinc Alloy | 线缆外径（最大） | 4.83 – 9.53 mm [ .19 – .375 in ] |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 备注 | 屏蔽外壳扩张工具 58241-4 适用的最大电缆外直径为 9.02 [.355]。, 护套和编织层移除后的最大电缆直径。 | 类型 | D-Subminiature |
| 等级 | 标准 | 连接器性别 | PIN |
| 产品特性 | Backshell, Grounding Indents, Shielded | 预装 | No |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
