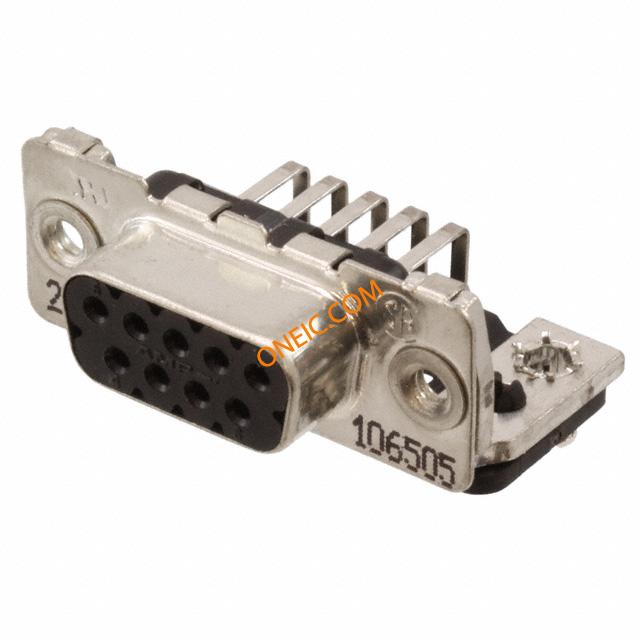

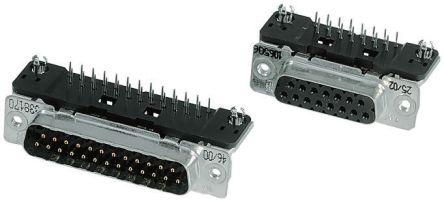

1-106505-2

点击放大查看

1-106505-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub High Density Connectors 9P.HDP20 REC.ASSY Standard Board Mount Connectors CONN RCPT 9POS R/A BOARDLOCK MET 9 Way r/a Euro Std D Skt, 4-40U Inserts Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, 40-40UNC, 9WAY 9Wayr/aEuroStdDSkt,4-40UInserts TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 欧式印刷电路板 D-Sub 连接器 插座 9P.HDP20 REC.ASSY.
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub High Density Connectors标准包装数量Trays
工厂包装数量55

合规参数

RoHSRoHS Compliant By Exemption海关税号85369010
抗辐射加固No无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
认可国家DIN 41652RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HDP-20 Series
额定电压125V工作电压:250VAC
最大额定电流6A

机械参数

颜色Black深度21.3mm
间距2.74 mm宽度13.6mm
高度13.6 mm长度30.9mm
密封型No重量0.072
镀层Tin材料（通用）Phosphor Bronze
占位面积10.31 [.406]包装方式Tray
插头颜色Black外壳尺寸1
端接方式Solder触头类型Signal
柱间距With第二连接器With
安装类型Through Hole外壳镀层Bright Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (4-40)接地类型Without
安装样式SMD/SMT排数2
外壳材料（壳体）Steel电路板厚度0.062 [1.57]
连接器样式D-Sub锁定特性Threaded Insert, 4-40 UNC
本体材料:Metal触头材料Phosphor Bronze
壳体材料Polyester GF总长度30.9 mm
面板安装类型Without尺寸/外形30.9 x 13.6 x 21.3mm
接地凹痕Without端接样式Solder
连接器颜色None触点数9
接触件端接:Solder位数9
外壳尺寸-插件Full Metal绝缘材料 - 材质Steel
外壳材料及表面处理Steel, Tin Plated触点材料 - 柱Nylon
端子柱长度3.20 [0.126]夹持材料 - 镀层Tin
接触镀层厚度30µin (0.76µm)螺钉材料 - 镀层Steel
后壳材料及镀层Steel外壳尺寸，连接器布局1 (DE, E)

产品信息

类型D-Subminiature连接器性别SKT
系列HD-20产品特性Board Lock
制造商全称AMP端口数1 Port

环境参数

工作范围Level 2工作温度-55°C ~ 105°C
