点击放大查看

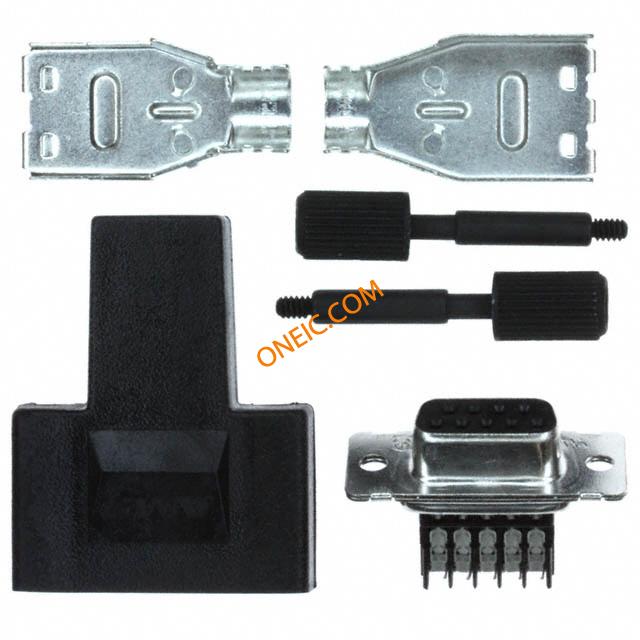

1-747943-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 9 POS IDT ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors DSUB E09S IDC 26-22AWG KIT Standard Cable Connectors CONN D-SUB RCPT 9POS 22-26AWG AU Conn D-Subminiature SKT 9 POS IDT ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Connector KitProduct Series = HDE-20 (IDC)Number of Positions = 9ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;CableSocket;9Pos;STR;HDE-20Series;IDC;26-22AWG;FrontMetalShell 9 Position Double Row Receptacle D-Sub w/ Shielded Assembly Kit 26-22 AWG KIT,RCPT,9P,HDE,SHLD ENCLSRE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85366910 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | ||
机械参数
| 颜色 | Black | 重量 | 0.027 |
| 包装方式 | Bulk | 外壳尺寸 | :DE |
| 导线线规 | 26-22 | 端接方式 | IDT |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Tin | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Cable Side; Male Jackscrew (4-40) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 本体材料 | :Metal | 屏蔽材料 | Steel |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 触点数 | 9 | 接触件端接 | :IDC / IDT |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HDE-20 | 产品特性 | Backshell, Shielded |
| 制造商全称 | HDE-20 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
