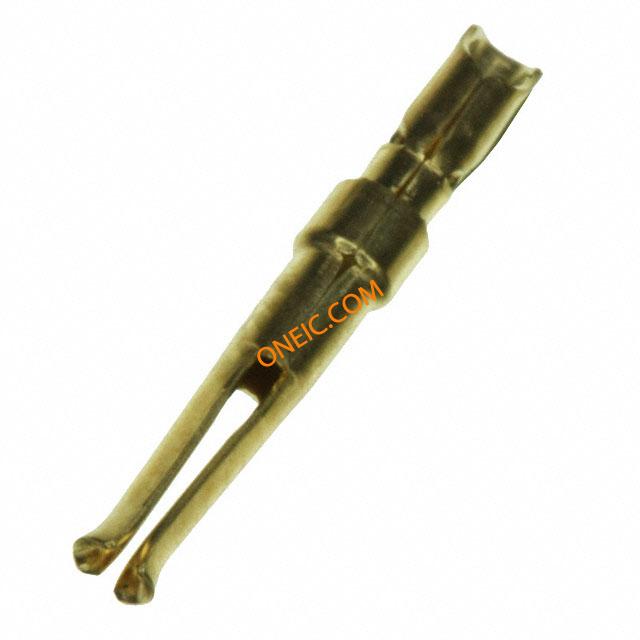

点击放大查看
1-66569-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Solder Cup ST Cable Mount Loose Piece D-Sub Contacts SNAP-IN CONTACTS Standard Cable Connectors CONN SOCKET 18AWG SOLDER CUP Conn Contact SKT 1 POS Solder Cup ST Cable Mount 1Terminal 1Port Loose Piece Contact SKT Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 18AWG, SOLDER SEE512-247866569-3 HDP-20 Series 18 AWG Solder Crimp Snap Socket Contact 20 DF SOCKET CONT,SMALL PACK |
| 分类 |
商业参数
| 其他名称 | 1665690 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0.018 | 镀层 | Gold |
| 材料（通用） | Phosphor Bronze | 包装方式 | Bulk |
| 导线线规 | 18 | 端接方式 | Solder Cup |
| 触点尺寸 | 20DF | 触头类型 | Signal |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 包装数量 | Loose Piece | 主要材料 | Contact |
| 绝缘高度 | No | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 接触件尾部长度 | 20 |
| 接触件端接 | Crimp Snap-In | 镀层厚度（通用） | Flash |
| 线规或范围 - AWG | 0.8 - 0.9 [18] | 触点材料 - 镀层 | GoldFlashoverNickel |
产品信息
| 类型 | Stamped | 等级 | Standard |
| 连接器性别 | SKT | 系列 | HDP-20 |
| 制造商全称 | AMPLIMITEHDP-20 | 产品子类型 | Contact |
| 适用产品/相关产品 | :AMPLIMITE HDP-20 Series CPC Connectors | 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 |
