点击放大查看

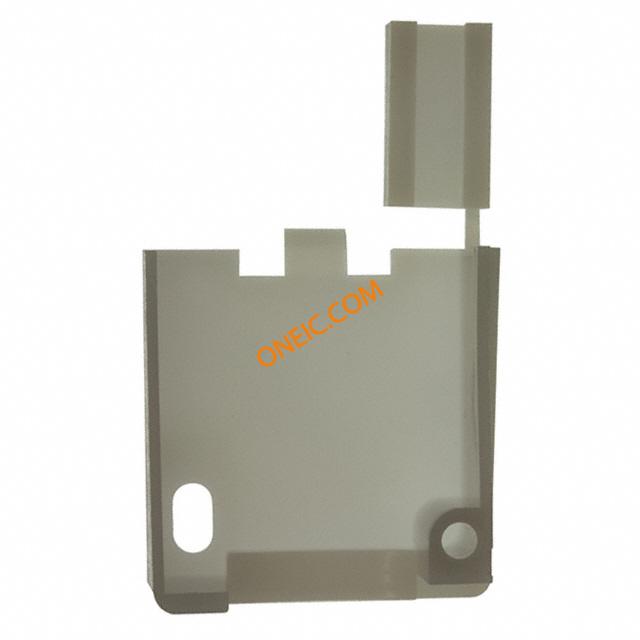

1-640723-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 12 POS Housing Strain Relief Nylon Natural Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 12POS Strain relief,plug or cap,matrix,12W,Nat Power to the Board 12P UMNL STR/REL & I Connector Accessories 12 POS Housing Strain Relief Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalNumber of Circuits = 12Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 12WAY, NYLON STRAINRELIEFS,NATURALNYLON,UL94V-2RATED,12CIRCUIT STRAIN RELIEF FOR 12 CIRCUIT UNIVERSAL MATE-N-LOK CONNECTOR TE Connectivity 12路 应力释放支架, 使用于 6 和 8 电路直插式适合插头外壳 12P UMNL STR/REL & INSRT NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 连接器类型 - 电压输入 | Universal MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 重量 | 0 |
| 线径 | 3.81 â 19.05 [0.150 â 0.750] | 行程角度 | Straight |
| 电缆直径 | 0.15-0.75" | 安装样式 | Snap In |
| 供货尺寸 | Yes | 壳体材料 | Nylon |
| 主要材料 | Interconnect | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 12 |
| 位数 | 12 | 绝缘材料 - 材质 | :Nylon |
| 典型触点布局 | Matrix | ||
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Strain Relief |
| 附件类型 | Strain Relief | 电路数 | 12 |
| 射频系列/标准 | 640723 | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | Universal MATE-N-LOK Series | ||
