2-480708-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12PS FREE HANG UNM-N-L Power to the Board 12P PLUG HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG HSG NATL |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | 认证机构标志 | 是 |
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 排间距 | 0.250" (6.35mm) |
| 触头类型 | Male or Female | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Without |
| 紧固类型 | Latch Lock | 排数 | 3 |
| 封装形式 | Plug | 面板厚度 | .03 – .09 |
| 壳体材料 | 尼龙 | 包装数量 | 1 |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 母端或公端 |
| 典型触点布局 | 矩阵 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品子类型 | 护套 |
| 装配配置 | Without | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
641974-1
te connectivity / amp
Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Power to the Board 12P PIN HDR ASSY .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;12Pos;UnivMATE-N-LOK;White 12P UMNL PIN HDR ASSY 94VO
350836-4
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 GOLD Pin & Socket Connectors 12P HDR ASSY PC 94V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO LF
643428-1
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 12 Way 3 Row Straight PCB Socket Through Hole Power Pin & Socket Connectors HEADER ASSY 12 POS Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP SOCKETHEADER12WAYPCB TE Connectivity Universal MATE-N-LOK 系列 3行 12路 直 6.35mm节距 通孔 印刷电路板插座, 功率 12P UMNL HDR ASSY POL 94VO
350737-1
te connectivity / amp
Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Power to the Board PCB HDR 12P Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IICompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PIN HDR ASSY 94VO
794716-1
te connectivity / amp
Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP RCPT 12POS UMNL FLANGE Power to the Board FLANGED CAP HSG 12P UL94V-2 Housing;UniversalMATE-N-LOK;12;19;600;Receptacle(Cap);Nylon;Natural 12P UMNL CAP HSG NATL,PAN MNT

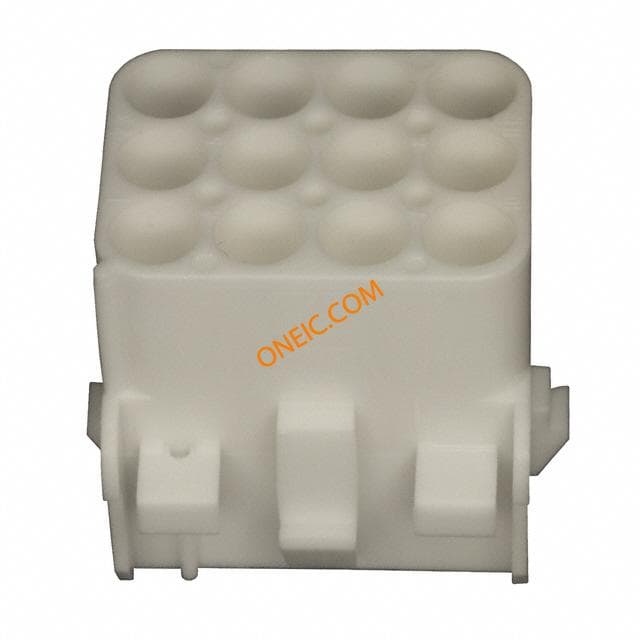

350783-1
