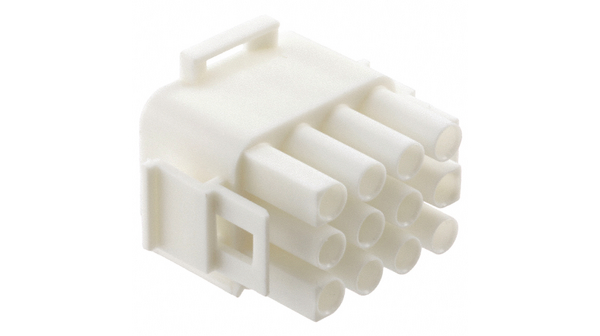

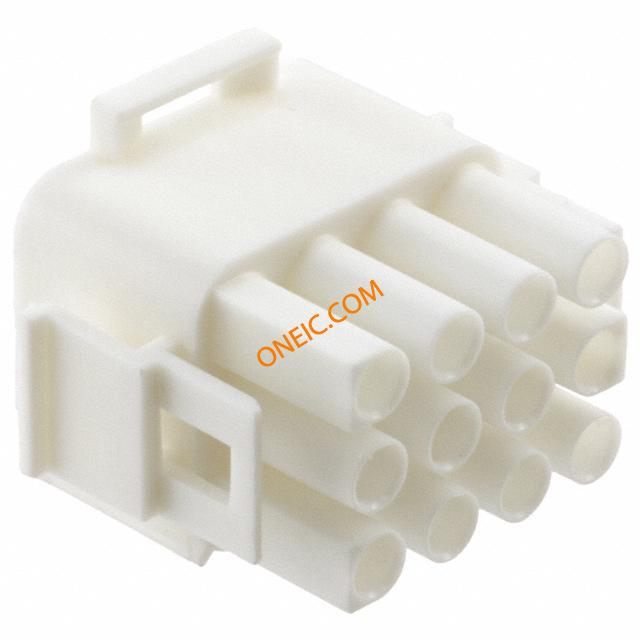

350735-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Power to the Board 12P PLUG UL94VO .250" Centerline, 600 V, 19 - 36 A max CONN HOUSING 12POS FREE HANGING Universal mate-n-lok 12w Plug Connector Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:12; 600V Crimp housing 6.35 mm Poles 12 MATE-N-LOK Universal, 350735-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 电缆安装 压接连接器外壳 12P UMNL PLUG HSG UL94VO |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR16455 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 测试电压 | 5000 | 额定电压 | 600 V |
| 极数 | 12 | 供电电压 | 600 |
| 最大额定电流 | 19 A | 绝缘电阻 | 1000 MOhm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | designed for any type of contacts |
机械参数
| 颜色 | White | 深度 | 27.43mm |
| 间距 | 6.35 mm | 宽度 | 27.43mm |
| 高度 | 27.43 mm | 密封型 | Not Sealed |
| 重量 | 7.72 g | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 方向 | 直 |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 封装形式 | Plug | 锁定特性 | lock |
| 壳体材料 | Nylon | 包装数量 | 10 |
| 尺寸/外形 | see | 连接器 - 电缆 | plug |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 第一连接器极性 | Male | 兼容外壳尺寸（如TM-700等） | 适当的通用 MATE-N-LOK 母端或公端 |
| 典型触点布局 | 矩阵 | 第一连接器安装特征 | 3x4 |
产品信息
| SPG | 10 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Connectors | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 连接方式 | Wire-Board |
| 装配配置 | Without | 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 105C |
文档与媒体
