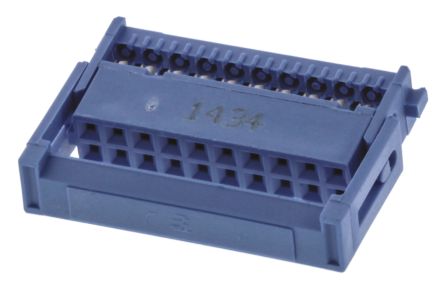

1-1658526-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS VERT GOLD W/SR 20 Way HE10 Skt w/ Strain Relief Headers & Wire Housings FEMALE SOCKET Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,20POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 609-2041LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | 116585263 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 609 Series | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
| 触点额定电流 | :1A | ||
机械参数
| 颜色 | Blue | 间距 | 2.54 mm |
| 重量 | 0.002 | 材料（通用） | :Glass Feinforced Thermoplastic |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | With | 导线线规 | 28-30 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 柱间距 | :2.54mm |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | AMP-LATCH |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Thermoplastic Glass Reinforced | 安装特性 | Without |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 20 |
| 接触件端接 | :IDC / IDT | 位数 | 20 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | AMP-LATCH | 产品特性 | Polarizing Key, Strain Relief |
| 极性 | :Bump/Clip | 制造商全称 | AMP-LATCH |
| 产品子类型 | Receptacles / Sockets - Housings | 连接类型 | Ribbon Cable |
| 带调制解调器控制 | Yes | ||
环境参数
| 插拔次数 | :200 | 工作温度 | +125°C |
