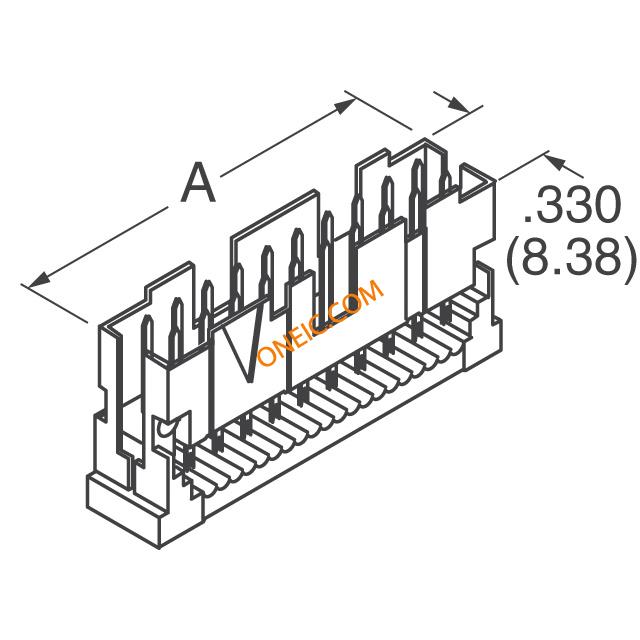

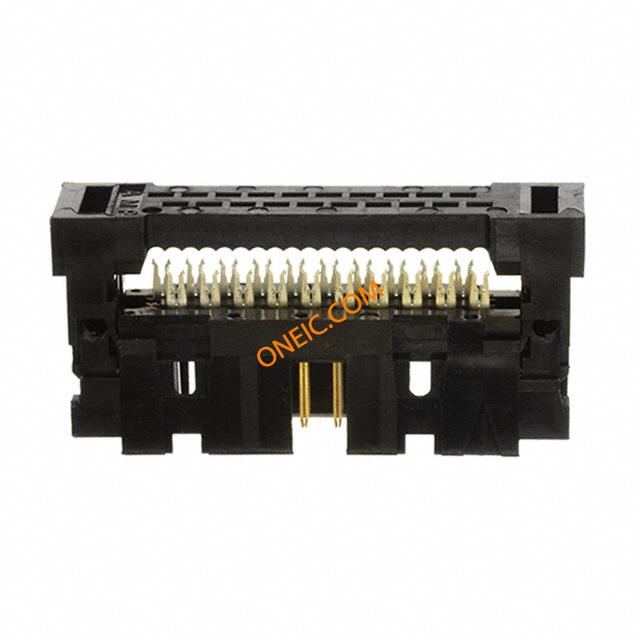

1-111446-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PL 20 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 20POS 30AU NO LATCH Headers & Wire Housings 100X100 PLG 2X10P Conn IDC Connector PL 20 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 20PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 20WAY CONNECTOR,PLUG,AMP-LATCH,20POSITION,TERMINATETORIBBONCABLE Plug; IDC; male; PIN:20; for ribbon cable; 1.27mm; Pin layout:2x10 020 UNIV I/O 30DP NO EARS |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 70 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Universal I/O Series | 接触电阻 | 15 mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1/Contact A |
| 触点额定电流 | :1A | ||
机械参数
| 颜色 | Black | 深度 | 8.38 mm |
| 间距 | 2.54 mm | 高度 | 19.15 mm |
| 重量 | 0.004 | 包装方式 | Tray |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 引脚间距 | :1.27mm | 柱间距 | 2.54mm |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | Universal I/O | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 封装形式 | :Black Thermoplastic | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 39.93 mm |
| 安装特性 | Without | 包装数量 | 2 |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 端接样式 | IDC |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 20 | 接触件端接 | :IDC / IDT |
| 位数 | 20 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :28AWG | 第一连接器安装类型 | :Cable |
| 第一连接器安装特征 | 2x10 | ||
产品信息
| SPG | 2 | 类型 | IDC Connector |
| 连接器性别 | PL | 系列 | AMP-LATCH |
| 产品特性 | Feed Through | 制造商全称 | AMP-LATCH |
| 产品子类型 | Connectors | 连接类型 | Ribbon Cable |
| 单元数量 | 1 | ||
环境参数
| 插拔次数 | :150 | 工作温度 | -65C to 105C |
文档与媒体
