5499206-4

点击放大查看

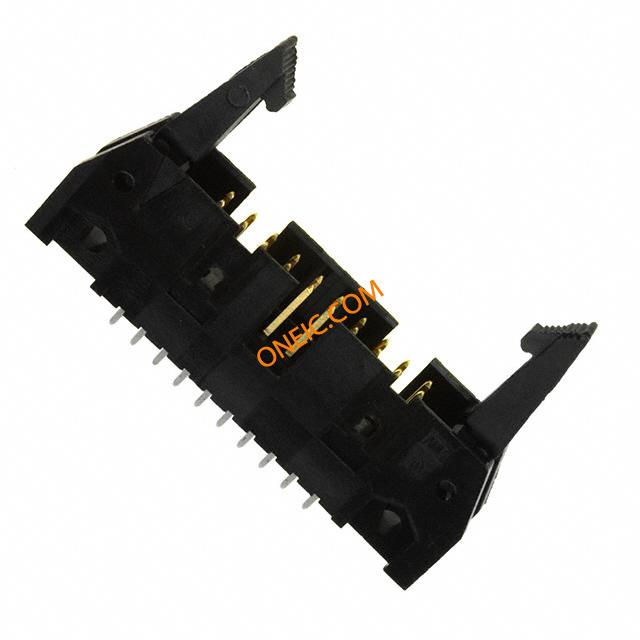

5499206-4

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 GOLD Headers & Wire Housings 20 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 20WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,20POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 20P VERT LG LAT
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量36

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series开关功能Ejection
击穿电压:500V最大额定电流1/Contact A
绝缘电阻:1Gohm最小供电电压250VAC

机械参数

颜色Black深度8.53 mm
间距2.54 mm高度27.3 mm
重量0.0685材料（通用）:Glass Reinforced Thermoplastic
包装方式Tray遮蔽类型Yes
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin引脚间距:2.54mm
柱间距2.54 x 2.54 [.100 x .100]极化Center, Dual Polarizing Bar, Military
第二连接器With触点形状Square
外壳颜色Black安装类型Vertical
外壳镀层:Tin连接器类型Universal Ejection Pin Headers
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel紧固类型Latch Lock/Eject Hooks
安装样式Through Hole排数2
封装形式4-Sided电路板厚度1.57 [0.062]
锁定特性Latch外形（宽 x 高）Standard
触头材料Brass/Phos Bronze壳体材料Thermoplastic
总长度44.7 mm主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)连接器颜色:Black
配接方向With触点数20
接触件端接:Through Hole Vertical位数20
接触长度 - 配合0.240" (6.10mm)端子柱长度2.79 [0.110]
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH极性:Bump/Clip
制造商全称AMP-LATCH产品子类型Headers
其他规格With加载位置数All

环境参数

插拔次数:200温度额定值Standard
工作温度-55C to 125C
