1-1478136-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER RF Connectors / Coaxial Connectors Str Plg MC 50 Ohm Conn BNC PL 0Hz to 4GHz 50Ohm ST Cable Mount Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC Str Plg MC 50Ohm Silver Pltd PSF1/4M |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 安全类别 | UG-959/U |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 连接器阻抗 | MIL-夹具 | 阻抗（最大）（Zzt） | 50 |
机械参数
| 包装方式 | Bulk | 电缆类型 | KX 4, PSF 1/4M, Raychem 5012A1422, Raychem 5012E1339, Raychem 5012E1632, RG 213, RG 8A, URM 67 |
| 本体表面处理 | Silver | 电缆组 | RG-8A, 213 |
| 基体材料 | Brass | 安装类型 | Cable Mount |
| 外壳镀层 | 硅橡胶 | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 壳体镀层 | 银 | 连接器样式 | BNC |
| 触头材料 | Brass | 包装数量 | 50 |
| 主要材料 | 黄铜 | 屏蔽层端接方式 | Clamp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | 带有 | 位数 | 1 |
| 中心触点表面处理 | 银 | 中心触点镀层工艺 | Silver |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 中心触点材料 | Brass |
| 第一连接器方向 | 直式 | 外管直径（最大） | 14.529 mm [ .572 in ] |
产品信息
| 类型 | BNC | 等级 | 专业 |
| 连接器性别 | PL | 可密封 | 否 |
| 连接类型 | RG/U Cable | 射频系列/标准 | 1478136 |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
相关型号
1-1337454-0
te connectivity / amp

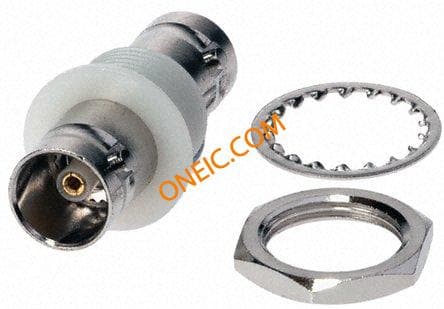

Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold BNC RF Connectors CONN BNC INS BH ADP JACK-JACK BNC,insulated,adaptor,jack-jack,50ohm RF Connectors / Coaxial Connectors BH ADP JACK-JACK Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Product Highlights:AdapterConnector Type = BNCBody Style = StraightCommercial GradeConnector Impedance = 50 ?Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, BULKHEAD BNC,strt,T-adaptor,plug-jack-jack,50ohm CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 1-1337454-0, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Ins BH Adp JJ 50Ohm Nickel Pltd
1-1337434-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC straight jack,crimp, Ag, RG58, RG141 RF Connectors / Coaxial Connectors BNC RM BHJ HEX 50OHM SLVR PLTD RG58C/U JACK BNC, BULKHEAD, RG58 GreenparcrimpBNCbulkheadjack-RG58 TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC RM BHJ Hex 50Ohm Silver Pltd RG58C/U
1-1478035-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC jack,PCB,right angle, 50 Ohm,silver RF Connectors / Coaxial Connectors R/A PCB Skt 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, ELBOW, 50R NiPtBNCrightanglePCBsocket,50ohm TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC R/A PCB Skt 50Ohm Silver P
1-1337452-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC,insulated b'head skt,50ohm,front mnt RF Connectors / Coaxial Connectors BULKHD SOCKET 50 OHM Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Individual Product Highlights:ConnectorConnector Type = BNCJack ReceptacleNot Stacked1 PortsSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAX CONN, BNC BLKHD JACK, 50OHM, CABLE BNC,insulatedb'headskt,50ohm,frontmnt Socket; BNC; female; insulated; straight; 50Ω; soldering; ABS BNC appliance socket, straight 50 Ohm, 1-1337452-0, TE Connectivity TE Connectivity BNC 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 50Ohm Nickel Gol
1-1337445-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC jack, PCB, vertical, 50 Ohm, silver RF Connectors / Coaxial Connectors Str PCB Skt 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, SQ 50 PCBBNCSKTSQUARE Socket; BNC; female; straight; 50Ω; THT; on PCBs; teflon TE Connectivity 直 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, RG140/U, RG210/U, RG59 B/U, RG62 A/U电缆, 镀银本体 BNC Str PCB Skt 50Ohm Silver P
1-1337457-0
te connectivity / amp

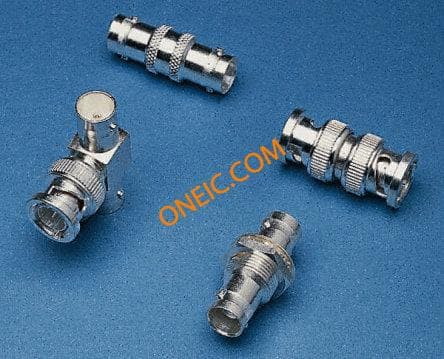

Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual BNC RF Connectors CONN BNC ADAPTER FEMALE/FEMALE Greenpar AgPt BNC skt-skt adaptor,50ohm RF Connectors / Coaxial Connectors BNC STR ADP JJ 50OHM SILVER PLTD Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R GreenparAgPtBNCskt-sktadaptor,50ohm TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Silver Pltd
1-1337442-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER Crimp BNC straight jack-RG58 cable,50ohm RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, RG58, STRAIGHT CrimpBNCstraightjack-RG58cable,50ohm TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Jk Hex 50Ohm Silver Pltd RG58C/U
1-1337450-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC bulkhead tagged socket, 50 ohm RF Connectors / Coaxial Connectors BNC BHSKT+TAG 50OHM SILVER PLTD BNCbulkheadtaggedsocket,50ohm BNCBHSKT+TAG50OHM TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC BHSkt + TAG 50Ohm Silver Pltd
1-1337548-0
te connectivity / amp

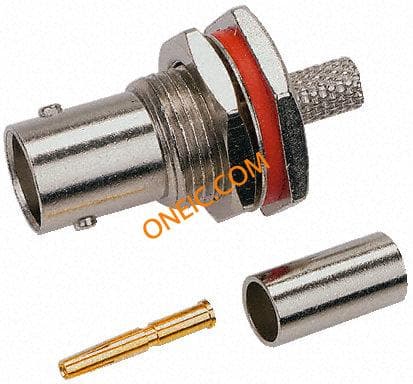

Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC bulkhead jack crimp RG174A/U 50Ohm RF Connectors / Coaxial Connectors 50 Ohms Female Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, BULKHEAD, RG174 BNCbulkheadjackcrimpRG174A/U50Ohm TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀镍本体 BNC RM BHJ Hex 50Ohm Nickel Pltd RG174A/
